Tripp Lite SMART2200RM2UN SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial

MPN: SMART2200RM2UN
UPC: 037332178015
PPN: TRP-SMART2200RM2UN

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3824.79/ EA

Qty:

Loading add to cart quantity...

Description

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial

Features

2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS; 0.9 power factor
120V nominal output during brownouts to 83V and overvoltages to 145V
Interactive LCD provides UPS status information and advanced configuration options
Hot-swap batteries, 96% efficiency, Sine wave output
USB, RS232 & EPO ports, Pre-Installed WEBCARDLX Network Interface
NEMA 5-20P input; 4 NEMA 5-15R & 4 5-15/20R outlets
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 4.5 min. (1920w)

DC System Voltage (VDC): 48

Internal UPS Replacement Battery Cartridge: RBC94-2U

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)12 min. (960w)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery AccessFront panel battery access door

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Certification DetailsSAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A

Physical

Cooling Method: Fan

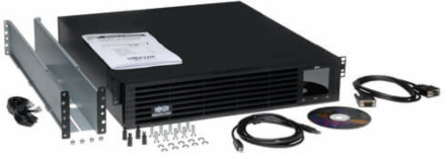

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth (inches): 24.46

Primary Form Factor: Rackmount

Primary UPS Height (mm): 87

Rack Height: 2U

Shipping Weight (lbs.): 77.00

UPS Power Module Dimensions (hwd, in.): 3.43 x 17.32 x 19.46

UPS Power Module Weight (lbs.): 57.6

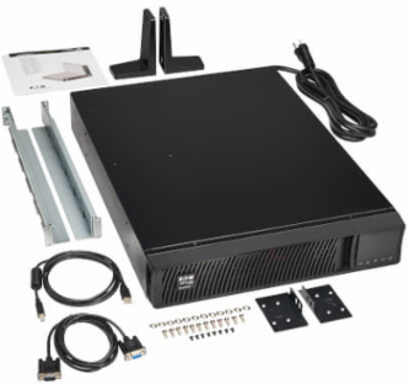

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

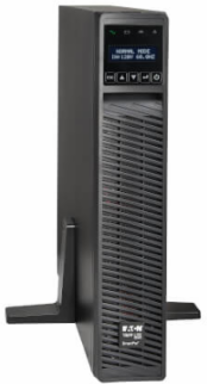

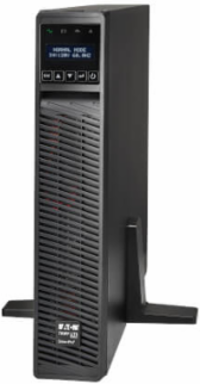

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm)494

Primary UPS Width (mm)440

Shipping Dimensions (hwd / in.)8.80 x 24.00 x 21.80

UPS Housing MaterialSteel

UPS Power Module Weight (kg)26.13

User Interface, Alerts & Controls

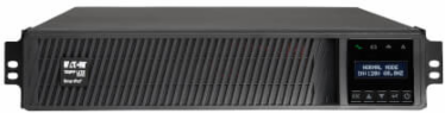

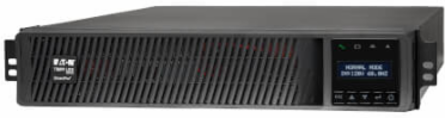

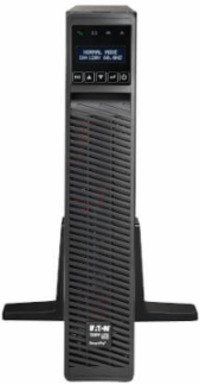

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

LED Indicators: Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%

Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 83 and 95 are boosted by 24%

Input

Rated input current (Maximum Load): 16A (120V)

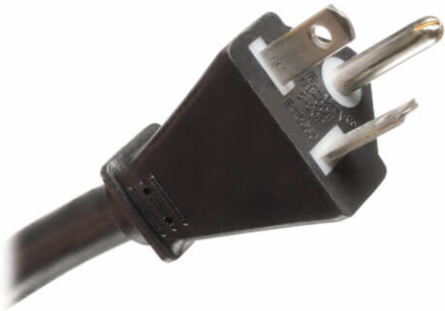

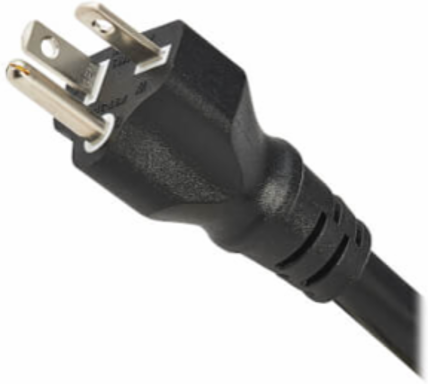

UPS Input Connection Type: 5-20P

UPS Input Cord Length (ft.): 10

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers20A

Recommended Electrical Service20A 120V

Output

Output Volt Amp Capacity (VA): 2200

Output Watt Capacity (Watts): 1920

Power Factor: 0.87

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)2.2

Output kW Capacity (kW)1.92

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-14%, +6%

Load Management ReceptaclesTwo switchable single-outlet load banks

Output AC Waveform (Battery Mode)Pure Sine wave

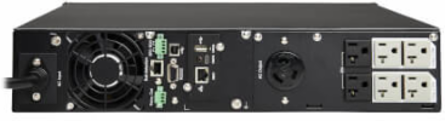

Output Receptacles(4) 5-15R; (4) 5-15/20R

Communications

Network Monitoring Port Description: Pre-installed WEBCARDLX Network Management Card interface

Communications Cable: Micro-USB, USB and DB9 cabling included

EPO Port: RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

SNMP CompatibilitySNMP V1, V2c, V3

Communications InterfaceDB9 Serial; EPO (emergency power off); Micro-USB; Pre-installed network card; RJ45 Network; Slot for SNMP/Web interface; USB (HID enabled); USB-A; USB-B

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1157

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)306

AC Mode Efficiency Rating (100% Load)96%

Overview

UPC Code: 037332178015

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks

Warranty

Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 145

Low Voltage Transfer to Battery Power (Setpoint)83
