Tripp Lite SMART1500RM2UN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, WEBCARDLX Network Interface, LCD, USB, 8 Outlets

SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, WEBCARDLX Network Interface, LCD, USB, 8 Outlets - https://media.province-electric.com/tripplite/2020q1/f5eea78ba8588fed9ef7b271df5a97cdb07a1c52-medium.png

SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, WEBCARDLX Network Interface, LCD, USB, 8 Outlets

Tripp Lite SMART1500RM2UN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, WEBCARDLX Network Interface, LCD, USB, 8 Outlets

MPN: SMART1500RM2UN
UPC: 037332178237
PPN: TRP-SMART1500RM2UN

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2971.21/ EA

Qty:

Loading add to cart quantity...

Description

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed WEBCARDLX network interface permits remote UPS management 24/7.

Features

Corrects under- and overvoltages from 83V to 147V
8 NEMA 5-15R outlets—4 switchable via network interface
Pre-installed WEBCARDLX network interface for remote management
Interactive LCD monitoring screen
13 min. runtime at half load; 4.5 min. at full load
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance
Protects Mission-Critical Rack-Mounted Equipment
Reliable Battery Backup
Pre-Installed WEBCARDLX Network Interface
2 Load Banks with Switchable Outlets
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
Interactive LCD Screen
Communications Ports
Versatile Installation Options

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 4.5 min. (1350w)

DC System Voltage (VDC): 36

Internal UPS Replacement Battery Cartridge: RBC93-2U

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)13 min. (675w)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery AccessFront panel battery access door

Expandable RuntimeNo

Certifications

UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth (inches): 16.45

Primary Form Factor: Rackmount

Primary UPS Height (mm): 88

Rack Height: 2U

Shipping Weight (lbs.): 59.00

UPS Power Module Dimensions (hwd, in.): 3.45 x 17.3 x 13.45

UPS Power Module Weight (lbs.): 46.5

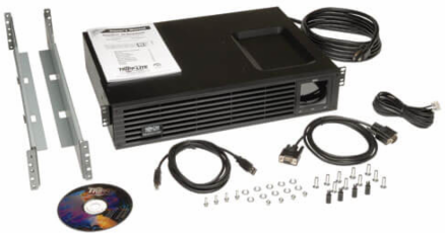

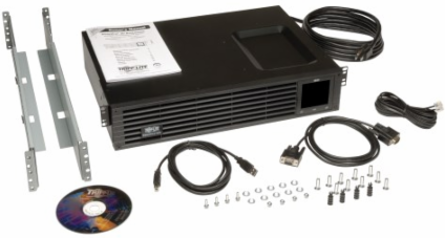

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm)342

Primary UPS Width (mm)439

Shipping Dimensions (hwd / in.)8.50 x 23.30 x 19.60

UPS Housing MaterialSteel

UPS Power Module Weight (kg)21.09

User Interface, Alerts & Controls

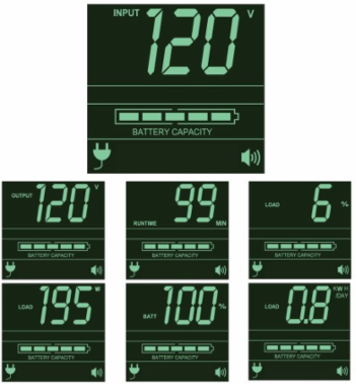

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

LED Indicators: Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset.

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147

Undervoltage Correction: Input voltages between 83 and 107 are boosted by 14%

Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%

Input

Rated input current (Maximum Load): 12A

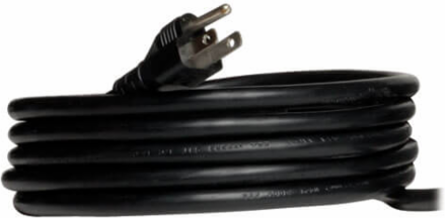

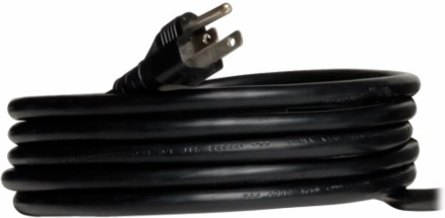

UPS Input Connection Type: 5-15P

UPS Input Cord Length (ft.): 10

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers15A

Recommended Electrical Service15A 120V

Output

Output Volt Amp Capacity (VA): 1500

Output Watt Capacity (Watts): 1350

Power Factor: 0.9

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)1.5

Output kW Capacity (kW)1.35

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-21%, +8%

Load Management ReceptaclesTwo switchable two-outlet 5-15R load banks

Output AC Waveform (Battery Mode)Pure Sine wave

Output Receptacles(8) 5-15R

Communications

Network Monitoring Port Description: Includes Pre-installed WEBCARDLX Network Management interface card. RJ45 Network port, Micro-USB Configuration/Console port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

Communications Cable: Micro-USB, USB, and DB9 cabling included

EPO Port: RJ11 interface jack with 4 meter cable included. Supports normally open and normally closed EPO systems

Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Communications Interface: DB9 Serial; EPO (emergency power off); Pre-installed network card; USB (HID enabled)

PowerAlert SoftwareFor local monitoring via the UPS’s built-in Serial or USB communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

SNMP CompatibilitySNMPv1, V2c, V3

Network Speed10/100 Mbps

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1012

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)267

AC Mode Efficiency Rating (100% Load)95%

Overview

UPC Code: 037332178237

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks

Warranty

Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 2-4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 147

Low Voltage Transfer to Battery Power (Setpoint)83
