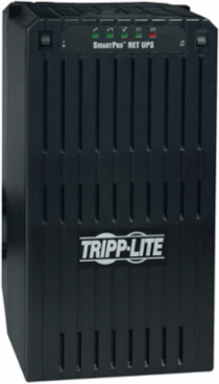

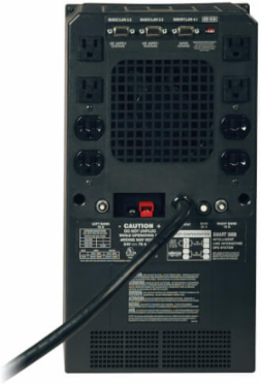

Tripp Lite SMART3000NET SmartPro 120V 3kVA 2.4kW Line-Interactive UPS, Tower, Extended Run, 3 DB9 ports

SmartPro 120V 3kVA 2.4kW Line-Interactive UPS, Tower, Extended Run, 3 DB9 ports - https://media.province-electric.com/tripplite/2020q1/ac51f5d60419cbee831e5d456975d138eef6675f-medium.png

SmartPro 120V 3kVA 2.4kW Line-Interactive UPS, Tower, Extended Run, 3 DB9 ports

MPN: SMART3000NET
UPC: 037332032065
PPN: TRP-SMART3000NET

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3156.61/ EA

Qty:

Loading add to cart quantity...

Description

SmartPro 120V 3kVA 2.4kW Line-Interactive UPS, Tower, Extended Run, 3 DB9 ports

Features

3kVA / 3000VA / 2400W line interactive, extended-run tower UPS
120V output, Corrects brownouts and overvoltages from 87V to 140V
3 DB9 ports (1 RS232 / 2 contact-closure)
Front panel status LEDs with load and battery capacity display
2 independently switchable output load banks
NEMA L5-30P input; 4 NEMA 5-15/20R & 4 NEMA 5-15R outlets
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 480

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 7 min. (2400w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 24

Expandable Runtime: Yes

Half Load Runtime (min.)23 min. (1200w)

External Battery Pack CompatibilityBP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 9 hours from 10% to 90% (typical, full load discharge)

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

Physical

Cooling Method: Fan

Primary UPS Depth (mm): 318

Primary UPS Width (mm): 229

Shipping Weight (lbs.): 96.60

UPS Power Module Dimensions (hwd, in.): 17 x 9 x 12.5

UPS Power Module Weight (lbs.): 89

Primary Form FactorTower

Primary UPS Height (mm)432

Shipping Dimensions (hwd / in.)16.50 x 12.60 x 21.80

UPS Housing MaterialPVC

UPS Power Module Weight (kg)40.37

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands

Audible Alarm: Audible alarm indicates power-failure and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140

Undervoltage Correction: Input voltages between 95 and 105 are boosted by 10%

Overvoltage CorrectionInput voltages between 127 and 140 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 87 and 94 are boosted by 22%

Input

Rated input current (Maximum Load): 22A

UPS Input Connection Type: L5-30P

Recommended Electrical Service: 30A 120V

Nominal Input Voltage(s) Supported120V AC

UPS Input Cord Length (ft.)8

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 3000

Output Watt Capacity (Watts): 2400

Power Factor: 0.8

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output Circuit Breakers: 15A branch rated (x2) - each breaker protects 4 outlets

Output AC Waveform (Battery Mode): PWM sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)3

Output kW Capacity (kW)2.4

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-13% / +5%

Load Management ReceptaclesTwo switchable single-outlet 5-15R load banks

Output AC Waveform (AC Mode)Sine wave

Output Capacity DetailsOutput is reduced to 1600W maximum with 1 external battery pack and 1200W maximum with 2 or more external battery packs

Output Receptacles(4) 5-15R; (4) 5-15/20R

Communications

Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)

Communications Cable: 3 DB9 cables included

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Communications InterfaceDB9 Serial; Contact closure
