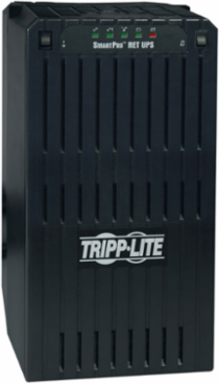

Tripp Lite SMART2200NET SmartPro 120V 2.2kVA 1.7kW Line-Interactive UPS, Tower, Extended run, 3 DB9 ports

SmartPro 120V 2.2kVA 1.7kW Line-Interactive UPS, Tower, Extended run, 3 DB9 ports - https://media.province-electric.com/tripplite/2020q1/f2d0a7396d567a15309e7ca01e2ece9c4c83985f-medium.png

SmartPro 120V 2.2kVA 1.7kW Line-Interactive UPS, Tower, Extended run, 3 DB9 ports

MPN: SMART2200NET
UPC: 037332032041
PPN: TRP-SMART2200NET

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2606.07/ EA

Qty:

Loading add to cart quantity...

Description

SmartPro 120V 2.2kVA 1.7kW Line-Interactive UPS, Tower, Extended run, 3 DB9 ports

Features

2.2kVA / 2200VA line interactive, extended-run tower UPS
120V output, Corrects brownouts and overvoltages from 87V to 140V
3 DB9 communication ports (1 RS232 / 2 contact-closure)
Front panel status LEDs with load and battery capacity display
2 independently switchable output load banks

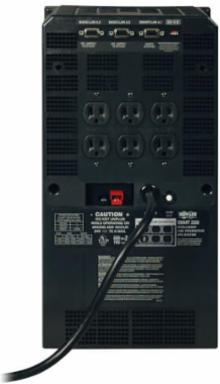

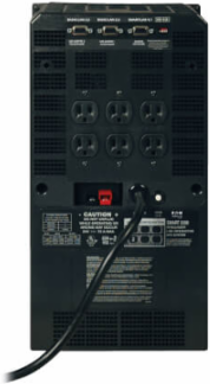

NEMA 5-15P input, 6 NEMA 5-15R outlets
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 720

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 11 min. (1700w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 24

Expandable Runtime: Yes

Half Load Runtime (min.)27 min. (850w)

External Battery Pack CompatibilityBP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 9 hours from 10% to 90% (typical, full load discharge)

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

Physical

Primary Form Factor: Tower

Primary UPS Height (mm): 432

Shipping Dimensions (hwd / in.): 13.75 x 16.50 x 22.50

UPS Housing Material: Polycarbonate

UPS Power Module Weight (kg): 36.29

Primary UPS Depth (mm)318

Primary UPS Width (mm)229

Shipping Weight (lbs.)81.00

UPS Power Module Dimensions (hwd, in.)17 x 9 x 12.5

UPS Power Module Weight (lbs.)80

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands

Audible Alarm: Audible alarm indicates power-failure and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140

Undervoltage Correction: Input voltages between 95 and 105 are boosted by 10%

Overvoltage CorrectionInput voltages between 127 and 140 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 87 and 94 are boosted by 22%

Input

Rated input current (Maximum Load): 15A

UPS Input Connection Type: 5-15P

UPS Input Cord Length (ft.): 8

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers20A

Recommended Electrical Service20A 120V

Input Cord Length (ft.)8

Output

Output Volt Amp Capacity (VA): 2200

Output Watt Capacity (Watts): 1700

Power Factor: 0.8

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Sine wave

Output Capacity Details: Output is reduced to 1200W maximum with 1-2 external battery packs and 800W maximum with 3 or more external battery packs

Output Receptacles: (6) 5-15R

Output kVA Capacity (kVA)2.2

Output kW Capacity (kW)1.7

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-13% / +5%

Load Management ReceptaclesTwo switchable single outlet 5-15R load banks

Output AC Waveform (Battery Mode)PWM sine wave

Nominal Output Voltage(s) Supported110V; 115V; 120V

Individually Controllable Load BanksYes

Communications

Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)

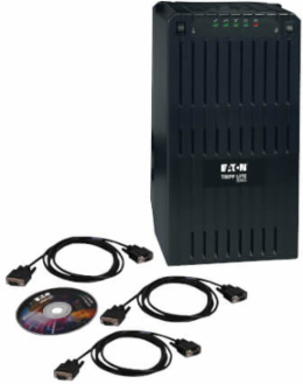

Communications Cable: 3 DB9 cables included

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Communications InterfaceDB9 Serial; Contact closure
