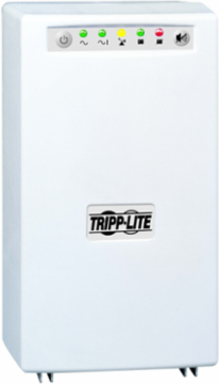

Tripp Lite SMX1200XLHG SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime - https://media.province-electric.com/tripplite/2020q1/8bf6b629ce92d2909da7d26acd2a0637d6ac2ba2-medium.png

SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

MPN: SMX1200XLHG
UPC: 037332140425
PPN: TRP-SMX1200XLHG

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2090.44/ EA

Qty:

Loading add to cart quantity...

Description

Provides UL 60601-1 compliant, medical-grade 1kVA/750W power backup, ideal for use in patient-care vicinities. The built-in isolation transformer offers full isolation while maintaining AC surge protection in all modes.

Features

Supports a half load up to 27.5 minutes; full load up to 11 minutes

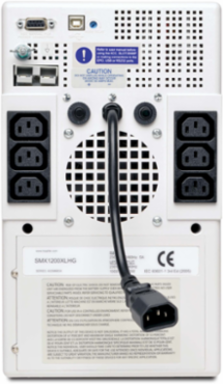

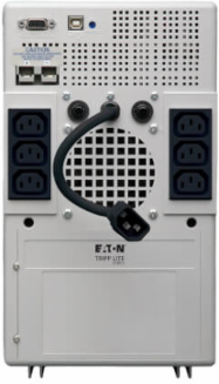

Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
Leakage current less than 100 microamps
340 joule surge suppression rating protects connected equipment
Alarm mute/alarm quiet control is ideal for use around patients
Approved to EN60601-1-2:2015, 4th Edition
2-year limited warranty

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 340

AC Suppression Response Time: Instantaneous

EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.): 11 min. (750w)

Expandable Battery Runtime: Supports extended runtime with optional BP36V15-2U (limit 1) and BP36V42-3U external battery pack (multi-pack compatible)

DC System Voltage (VDC): 36

Internal UPS Replacement Battery Cartridge: RBC36SLT

Typical Battery Lifespan: 3-6 years, depending on usage

Half Load Runtime (min.)27.5 min. (375w)

External Battery Pack CompatibilityBP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27-2US (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%

Battery AccessBattery access door allows hot swap battery replacement without powering connected equipment off

Expandable RuntimeYes

Certifications

UPS Certifications: CE; Tested to UL60601-1 (medical grade)

Physical

Cooling Method: UPS cooling via rear-exit fan

Primary Form Factor: Tower

Primary UPS Height (mm): 323

Shipping Dimensions (hwd / in.): 18.50 x 12.20 x 13.38

UPS Housing Material: PVC

UPS Power Module Weight (kg): 20.64

Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)

Primary UPS Depth (mm)231

Primary UPS Width (mm)191

Shipping Weight (lbs.)48.80

UPS Power Module Dimensions (hwd, in.)12.7 x 7.5 x 9.1

UPS Power Module Weight (lbs.)45.5

User Interface, Alerts & Controls

Switches: Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions

LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Audible AlarmAudible Alarm is factory muted for silent operation; Audible alarm can be restored to indicate power failure, overload conditions and Low Battery events using our Free Power Alert UPS management software.

Voltage Regulation

Voltage Regulation Description: Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power over an input voltage range of 155 to 274V AC.

Undervoltage Correction: Input voltages between 183 and 199 are boosted by 10%

Overvoltage CorrectionInput voltages between 245 and 274V AC are reduced by 9%

Severe Undervoltage CorrectionInput voltages between 156 and 182 are boosted by 21%

Input

Rated input current (Maximum Load): 5A

UPS Input Connection Type: C14 inlet

Recommended Electrical Service: 10A 230V

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported230V AC

UPS Input Cord Length (ft.)0.50

Voltage Compatibility (VAC)230

Output

Output Volt Amp Capacity (VA): 1000

Nominal Voltage Details: 230v nominal inverter output voltage

Frequency Compatibility Details: Automatic frequency selection

Output AC Waveform (Battery Mode): PWM sine wave

Output Receptacles: (6) C13

Output Watt Capacity (Watts)750

Frequency Compatibility50 / 60 Hz

Output Voltage Regulation (Line Mode)-18%, +8%

Nominal Output Voltage(s) Supported220V; 230V; 240V

Individually Controllable Load BanksNo

Communications

Communications Interface: USB; DB9 Serial

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 252.2

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)252.2

Overview

UPC Code: 037332140425

UPS TypeLine-Interactive

Special Features

Grounding Lug: Ground Potential Equalization Connector: POAG-S6/20

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Warranty

Product Warranty Period (International): 2-year limited warranty

Line / Battery Transfer

Transfer Time: 2-4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 274

Low Voltage Transfer to Battery Power (Setpoint)155
