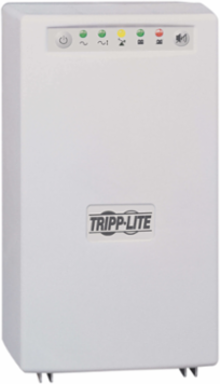

Tripp Lite SMX700HGL SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation
Tripp Lite SMX700HGL SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation
- MPN: SMX700HGL
- UPC: 037332224804
- PPN: TRP-SMX700HGL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3766.74/ EA
Description
SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 700VA, 450W, Full Isolation
Features
- Lithium battery backup allows time to save files and safely shut down during blackouts
- 6 C13 hospital-grade (HG) outlets provide power to medical equipment
- Approved for use within the Patient Care Vicinity
- Approved to EN60601-1-2:2015, 4th Edition
- Alarm and front-panel LEDs report online, battery, fault and overload conditions
- 10,000-cycle LiFePO4 battery lasts up to 30x longer than comparable SLA batteries
- 5-year limited warranty
- 700VA/450W Medical-Grade UPS Allows Time to Back Up Critical Files During a Blackout
- Long-Lasting LiFePhos Battery Handles up to 10,000 Cycles with Ease
- Automatic Voltage Regulation (AVR) Corrects Potentially Hazardous Voltage Fluctuations
- Built-In Isolation Transformer Offers Full Isolation
- Connect Your Equipment to 6 IEC 320 C13 Outlets
- Combats Electromagnetic Interference That Can Harm Equipment
- Easy-to-Read LEDs and Alarm Report Real-Time UPS and Power Status
- Saves Your Files, Even When You’re Away
- Tower Form Factor for Easy Placement on a Nurse’s Station or Mobile Medical Cart
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 340
- AC Suppression Response Time
- Instantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 14.5 min. (450w)
- DC System Voltage (VDC)
- 36
- Internal UPS Replacement Battery Cartridge
- RBC53L
- Typical Battery Lifespan
- 3-6 years, depending on usage
Half Load Runtime (min.)36 min. (225w)
Battery Recharge Rate (Included Batteries)Less than 3.6 hours from 10% to 90% (typical, full load discharge)
Battery AccessBattery access door allows hot swap battery replacement without powering connected equipment off
Expandable RuntimeNo
Certifications
- UPS Certifications
- CE; Tested to UL60601-1 (medical grade)
Physical
- Cooling Method
- Cooling via rear-exit cooling fan
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 325
- Shipping Dimensions (hwd / in.)
- 18.50 x 12.20 x 13.38
- UPS Power Module Dimensions (hwd, in.)
- 12.8 x 7.5 x 9
- UPS Power Module Weight (lbs.)
- 42.1
Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)
Primary UPS Depth (mm)229
Primary UPS Width (mm)191
UPS Housing MaterialPVC
UPS Power Module Weight (kg)19.10
User Interface, Alerts & Controls
- Switches
- Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
- LED Indicators
- 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Audible Alarm3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone). Audible Alarm is factory muted for silent operation; Audible alarm can be restored to indicate power failure, overload conditions and Low Battery events, using our Free PowerAlert UPS management software.
Voltage Regulation
- Voltage Regulation Description
- Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power over an input voltage range of 155 to 274V AC
- Undervoltage Correction
- Input voltages between 183 and 199 are boosted by 10%
Overvoltage CorrectionInput voltages between 206 and 245V AC are reduced by 9%
Severe Undervoltage CorrectionInput voltages between 155 and 182 are boosted by 21%
Input
- Rated input current (Maximum Load)
- 3.6A
- UPS Input Connection Type
- C14 inlet
- Recommended Electrical Service
- 10A 230V
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported230V AC
UPS Input Cord Length (ft.)0.50
Voltage Compatibility (VAC)230
Output
- Output Volt Amp Capacity (VA)
- 700
- Nominal Voltage Details
- 230v nominal inverter output voltage
- Frequency Compatibility Details
- Automatic frequency selection
- Output AC Waveform (Battery Mode)
- PWM sine wave

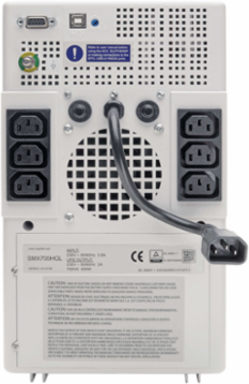

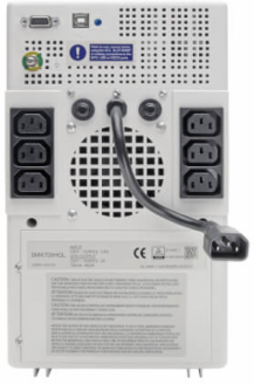

- Output Receptacles
- (6) C13
Output Watt Capacity (Watts)450
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Line Mode)-18%, +8%
Nominal Output Voltage(s) Supported220V; 230V; 240V
Individually Controllable Load BanksNo
Communications
- Communications Interface
- USB; DB9 Serial
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 189.1
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)208.6
Overview
- UPC Code
- 037332224804
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Equipotential connection (back panel grounding lug)
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (International)
- 5-year limited warranty
Line / Battery Transfer
- Transfer Time
- 5 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 274
Low Voltage Transfer to Battery Power (Setpoint)155
