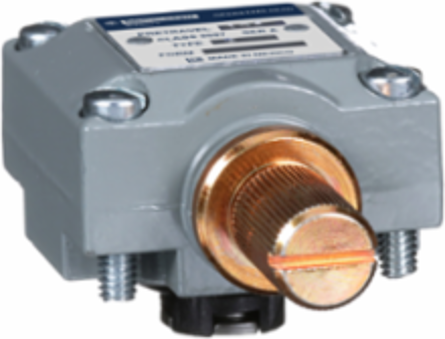

Schneider Electric 9007AO1B Snap basic limit switch, 9007, 600 VAC 15amp ao +options
- MPN: 9007AO1B
- UPC: 785901759119
- PPN: SCH-9007AO1B
CAD
$64.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Snap basic limit switch, 9007, 600 VAC 15amp ao +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Body Type
- fixed
- Device Short Name
- 9007AO/CO
Range Of Product9007
Product Or Component Typesnap basic limit switch
Complementary
- Switch Actuation
- on end
- Height
- 2.5 in
- Terminals Description Iso N°1
- (3-4)NO
- Electrical Connection
- 1-2 6 binder head screw terminals AWG 22...AWG 14)
- Number Of Steps
- 1
- Operator Material
- cast zinc
- Fixing Mode
- by the body
- Maximum Force For Tripping
- 0.69 lbf
- Operator Profile
- plunger head
- [Ithe] Conventional Enclosed Thermal Current
- 15 A
- Contacts Type And Composition
- NO SPST-NO-DB
- Width
- 0.83 in
- Material
- metal
- Number Of Poles
- 1
Type Of Approachvertical approach, 1 direction
Movement Of Operating Headlinear
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.05 A 600 V DC, Q600 NEMA rating designation || 0.25 A 250 V DC, Q600 NEMA rating designation || 0.5 A 125 V DC, Q600 NEMA rating designation
Contacts Materialsilver contacts
Type Of Operatorspring return plunger plastic with thermoplastic end
Body Materialcast zinc
Contact FormForm X
Minimum Force For Tripping0.44 lbf
Depth1.03 in
Net Weight0.1 lb(US)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250
Ambient Air Temperature For Storage-20-185 °F
Ip Degree Of ProtectionIP20 IEC 60529
