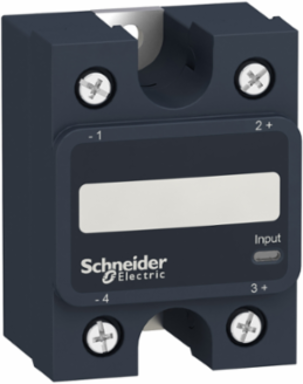

Schneider Electric SSP1A125BD Harmony Solid State Relay 25A, 24-300V AC, Zero Voltage Switching
- MPN: SSP1A125BD
- PPN: SCH-SSP1A125BD
CAD
$53.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25 A, is controlled with a 3 to 32 V DC circuit, has a rated load voltage of 24 to 300 V AC output. It also has a test button for easy debugging, testing and commissioning It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC, 1 hp 240 V AC
- Absolute Maximum Voltage
- 600 V
- Maximum Leakage Current
- 1 mA off-state
- Minimum Switching Voltage
- 3 V DC turn-on
Maximum Voltage Drop<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Line Rated Current25 A
Maximum Switching Voltage1 V DC turn-off
Rated Current25 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button, without test button
- Marking
- CSA, CE, EAC, UL
- Response Time
- 0.5 cycle (turn-on), 0.5 cycle (turn-off)
- Tightening Torque
- 1.5...1.7 N.m for input, 2...2.2 N.m for output
- Certificate Agency
- CSA, UL, CE, EAC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV output to case, 6 kV input to output
- Maximum I²T For Fusing
- 259 A².s for 8.33 ms at 60 Hz, 285 A².s for 10 ms at 50 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.022964
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0766
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505006EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cos Phi
- 0.5-0.5 (with maximum load)
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED, green input
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.8.1
- Thermal Resistance
- 0.8 °C/W junction to case
- Pep Code
- ENVPEP1505006EN
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Package Weight(Lbs)
- 97.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 9.3929
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 2.3376
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 13.921
- Water Pollution (M3) Manufacturing [A1-a3]
- 218.34
- Water Pollution (M3) End Of Life [C1-c4]
- 1.4222
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output, 4 kV AC for input or output to case
Protection Device Typetype 1 - 25 A miniature circuit breaker (MCB) B, type 2 - 20 A miniature circuit breaker (MCB) B
Safety Reliability DataMTTFd = 1875.9 years, B10d = 1731395
Control Circuit Voltage3...32 V
[Uc] Control Circuit Voltage3...32 V DC, 3...32 V
Connections - Terminalsring lugs 11.7 x 4.5 mm output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Carbon Footprint Of The Distribution Phase [A4]0.012515, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00054394, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 616 kg CO2 eq., 2616.0366198089
Local Publishable Date2026-03-26
Stocking FlagN
Manufacturing Carbon Footprint1.0766
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameSSP1
Load Current0.15-25 A
Mounting Supportpanel
Phase1 phase
Product Or Component Typepanel mount relay
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 617 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh4430.829
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Manufacturing [A1-a3]129.36
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]1.0766
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]13.364
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.475
Water Pollution (M3) Distribution [A4]2.0581
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2617.1492427489
- Environmental Disclosure
- ENVPEP1505006EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1505006EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-125 °C, -40-125 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2019-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typepanel mount relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- zero voltage switching, SCR output
- Output Voltage
- 24...300 V AC
Output Switching Modezero voltage switching
Surge Protection And Filtering Attributes
- Surge Current
- 250 A 16.6 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits10-10 mA at 12 V DC
