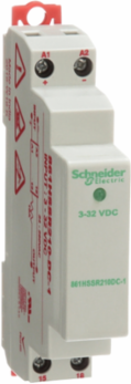

Schneider Electric 861HSSR210-DC-1 Relay, SE Relays, solid state, SPST NO, 10A, 24 to 280 VAC, 3 to 32 VDC, SCR, AC zero cross, hazardous locations approved
- MPN: 861HSSR210-DC-1
- PPN: SCH-861HSSR210-DC-1
- UNSPSC: 39122333
CAD
$107.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The SE Relays 861H series, patented solid-state, UL certified for Class I Division 2 Hazardous Locations per ISA 12.12, relay offers an energy-efficient SCR AC zero cross current switching device with input voltage range as 3VDC to 32VDC. SPST-NO contacts with rated current 10A and output voltage 3VAC to 50VAC . Solid-state circuitry involves no moving parts and is alternative to standard electromechanical relays. Advantages include longer life cycles, less energy consumption, and reduced maintenance costs. Optically coupled circuit provides isolation between input and output circuits. Internal snubber helps protect the relay’s internal circuit from high voltage transients. Finger protected (IP 20) terminals help prevent an operator from touching live circuits. Mounts directly onto a DIN rail or panel, and provides flexibility to accommodate last-minute design changes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|
| Depth | 89.93 mm |
|---|
Complementary Attributes
| Maximum Voltage Drop | <1.6 V peak AC, <1.6 V peak AC, <1.6 V peak AC, <1.25 V on-state AC, <1.25 V on-state AC, <1.25 V on-state AC<1.6 V peak AC, <1.6 V peak AC, <1.6 V peak AC, <1.25 V on-state AC, <1.25 V on-state AC |
|---|---|
| Maximum Output Current | 10 A AC |
| Maximum Leakage Current | 6 mA at off-state 240 V AC |
|---|---|
| Uc Control Circuit Voltage | 3...32 V DC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | panel, DIN rail |
| Certificate Agency | CE, CSA, UL |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Dielectric Strength | 4000 V between input and output2500 V between terminals and chassis |
| Load Current | 10 A at nominal load8 A incandescent lamp4.5 A motor |
| Overload Current | 24 A for 1 second |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Technology | current limiter |
| Range Of Product | Legacy |
| Sustainable Packaging | Yes |
| Thermal Resistance | 0.66 °C/W |
| Connections Terminals | input/output screw clamp terminal 2.5-2.5 mm² 14 AWG) |
| Width Nominal | 15.75 mm |
| Maximum I²T For Fusing | 1250 A².s 8.3 ms |
| Customs Code | 8536490080 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Response Time | 8.33 ms (turn-off), 8.33 ms (turn-on) |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Type And Composition | NO |
| Holding Current | 50 mA |
| Local Signalling | 1 LED (green) for input status |
| Phase | 1 phase |
| Product Or Component Type | solid state relay |
| Protection Type | reverse polarity protection |
| Returnability | Yes |
| Switch Function | SPST |
| Tightening Torque | 0.8 N.m for input/output |
| Height Nominal | 65 mm |
| Dv/Dt | 500 V/µs off-state at maximum rated voltage |
| Nbr. Of Units In Pkg. | 1 |
| Drop Out Voltage | 1 V |
Environment Attributes Main
| Ambient Air Temperature For Operation | -30-80 °C, -30-80 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Ambient Air Temperature For Storage | -40-100 °C, -40-100 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Legacy |
| Product Or Component Type | solid state relay |
|---|
Output Attributes
| Solid State Output Type | SCR output, zero voltage switching |
|---|
| Output Voltage | 24...280 V AC |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 500 A 1 cycle |
|---|
Input Attributes
| Input Current Limits | 16-16 mA at 5 V DC typical |
|---|
Overview Attributes
| Device Presentation | complete device |
|---|
