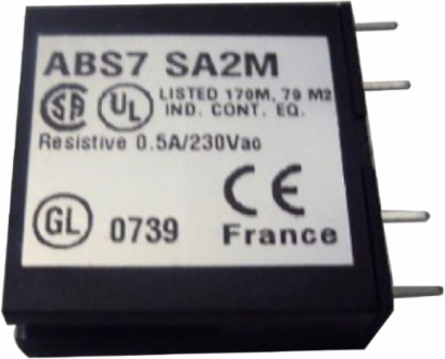

Schneider Electric ABS7SA2M Plug-in Solid State Relay - 10 mm, 24-240 V AC, 0.5 A Output

  • MPN: ABS7SA2M
  • PPN: SCH-ABS7SA2M
  • UNSPSC: 39122333

CAD

$23.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The ABS7SA2M Plug-in Solid State Relay from Schneider Electric stands out for its versatility and reliability in automation and control applications. Operating within a wide voltage range of 24 to 240 V AC and delivering a maximum output of 0.5 A, this relay is engineered to efficiently manage electrical loads while ensuring minimal wear and tear due to its solid-state design. Ideal for various industrial environments, it enhances system performance by offering robust control without the mechanical failures associated with traditional relays, making it a trusted choice for modern automation solutions.

Features

  • Plug-in solid-state relay for easy installation and reliable performance
  • Control circuit voltage of 24 V DC
  • Offering voltage and power adaptation and common polarities distribution
  • Reduce the need for high-amperage wiring and switches

Documentation & Downloads

Specifications

Key Specifications

Country of OriginLatvia, United States
Weight16 g

Important Information Attributes

Persona Type IdsEU, OM, OM8
Response Time<= 10 ms from state 0 to 1, <= 10 ms from state 0 to 1, <= 10 ms from state 1 to 0, <= 10 ms from state 1 to 0<= 10 ms from state 0 to 1, <= 10 ms from state 0 to 1, <= 10 ms from state 1 to 0
Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.03327829523671258
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.3273510080381165
Local Data StatusPublishable
Return IndicatorN
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1846
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Current State 0 Guaranteed0.4 mA DC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 4
Relay Typeoutput relay
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Voltage State 1 Guaranteed18.6 V DC
Width Pitch Dimension10 mm
Data Sourceextrapolated product
Customs Code8536490055
Functional Unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To interface PLC I/O signals with field devices through a pre-wired relay interface, operating at 1.92 W during 10 years and a 100% use rate.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh10512
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase A40.003986115990196895, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.004542686025477293, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
Local Publishable Date2026-08-06
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current State 1 Guaranteed6.5 mA DC
Product Or Component Typeplug-in solid state relay
Range Of ProductAdvantys Telefast ABE7
ReturnabilityNo
Sustainable PackagingNo
Voltage State 0 Guaranteed2.8 V DC
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %5

Environment Attributes Main

Product CompatibilityABE7P16T210, ABE7P16T212, ABE7P16T215, ABE7P16T214
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1409004_V2
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-05-29
Psr VersionPSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Carbon Footprint0.3691581052905033
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1409004_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typeplug-in solid state relay
Range Of ProductAdvantys Telefast ABE7

ETIM

ETIM 8EC001652
ETIM 10EC001652
ETIM 9EC001652

Output Attributes

Discrete Output Current500 mA
Discrete Output Voltage24...240 V AC

Contractual Warranty Attributes

Warranty18 months

Input Attributes

Discrete Input Voltage24 V DC
Plug-in Solid State Relay - 10 mm, 24-240 V AC, 0.5 A Output
