Schneider Electric NSYTSACRNB Spacial CRN Insulated 259x105mm. RAL7035.
Schneider Electric NSYTSACRNB Spacial CRN Insulated 259x105mm. RAL7035.
- MPN: NSYTSACRNB
- PPN: SCH-NSYTSACRNB
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$23.68/ EA
Description

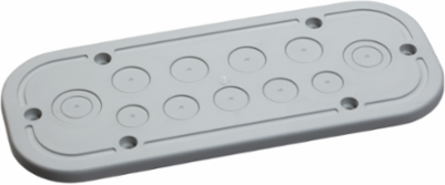

Spacial CRN Insulated 259x105mm. RAL7035.
Specifications
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Specifications
- Range Compatibility
- Spacial Spacial CRN
- Accessory / Separate Part Category
- cable management accessory
- Cable Gland Type
- knock-out
- Cable Entry
- 2 knock-outs Pg 11 || 2 knock-outs Pg 21/11 || 3 knock-outs Pg 13.5 || 4 knock-outs Pg 16 || 4 knock-outs Pg 13.5 || 5 knock-outs Pg 16 || 4 knock-outs Pg 29/16 || 2 knock-outs Pg 36/29
- Device Application
- multi-purpose
- Mounting Location
- enclosure bottom
Materialseal polyethylene (PE) foam || plate ABS with 30 % fibre glass
Quantity Per Setset of 1
Product Or Component Typecable gland plate
Device Compositionfixing elements || 1 plate || 1 separated seal
RangeSpacial
Complementary
- Number Of Cut-Out
- pre-marked hole
- Height
- 105 mm || 15 mm
- Thickness
- 1 mm
- Depth
- 105 mm
Widthreal 280 mm || 259 mm
Colourplate grey RAL 7035)
Net Weight0.14 kg
