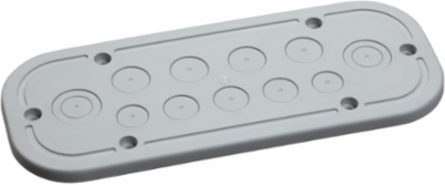

Schneider Electric NSYTSACRNC Spacial CRN Insulated Cable Gland Plate 360 mm x 163 mm, RAL 7035
- MPN: NSYTSACRNC
- PPN: SCH-NSYTSACRNC
CAD
$40.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYTSACRNC Spacial CRN Insulated Cable Gland Plate is designed specifically for use in automation and control applications, as well as data and communication environments. Measuring 360 mm by 163 mm, this insulated cable gland plate not only enhances the functionality of IT enclosures and racks but also provides critical protection for cable entries. Featuring a sleek RAL 7035 finish, it seamlessly integrates into modern setups, ensuring both safety and aesthetic appeal for your installation needs.
Documentation & Downloads
Specifications
Additional
- Device Composition
- fixing elements, 1 plate, 1 separated seal
- Range Compatibility
- Spacial CRN
- Height
- 163 mm, 15 mm
- Thickness
- 1 mm
- Mounting Location
- enclosure bottom
- Material
- seal polyethylene (PE) foam, plate ABS with 30% fibre glass
- China RoHS Regulation
- Product out of China RoHS scope, substance declaration
- REACH Regulation
- Reference contains SVHC above threshold
- Mercury Free
- Yes
- Warranty
- 18 months
- Device Application
- multi-purpose
Cable Entry2 knock-outs Pg 11, 2 knock-outs Pg 21/11, 4 knock-outs Pg 13.5, 5 knock-outs Pg 16, 4 knock-outs Pg 29/16, 2 knock-outs Pg 36/29
Width360 mm, real 380 mm
Depth163 mm
Net Weight0.272 kg
Cable Gland Typeknock-out
Colorgray RAL 7035
EU RoHS DirectivePro-active compliance
RoHS Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Accessory / Separate Part Categorycable management accessory
Number Of Cut-Outpre-marked hole
