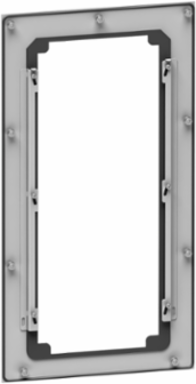

Schneider Electric NSYPTDS2 Drive Flush Mounting Kit, IP55, External Width 265 mm, Height 420 mm
- MPN: NSYPTDS2
- PPN: SCH-NSYPTDS2
CAD
$562.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This drive flush mounting kit from Schneider Electric is designed for seamless integration into your automation and control systems. With an external width of 265 mm and a height of 420 mm, it offers a space-efficient solution that aligns perfectly with industrial requirements. The IP55 rating ensures it withstands dust and water exposure, making it suitable for a variety of environments. This kit is an essential component for anyone looking to enhance the functionality and reliability of their motors and drives.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
- Width
- 8.46 in
Height14.76 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Kit Composition
- 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts, 1 x fixing accessories, 1 x drilling template, 1 x instruction sheet1 x edge protector profile, plastic
- Mounting Location
- 1 back of enclosure mounting plate, 2 inside enclosure
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Permanent Permissible Load
- 7.7 kg
- Product Or Component Type
- drive flush mounting kit
- Range
- PanelSeT
- Services
- configuration of enclosure pre-drilled backfactory installation drive flush mounting kit
- Height Nominal
- external: 420 mm
- Width Nominal
- external: 265 mm
- Accessory / Separate Part Category
- mounting and fixing accessory
- Package Weight(Lbs)
- 1.922 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Motor Power Kw5.5 kW 220/240 V7.5 kW 380/480 V, 11 kW
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationprocess and utilities
ReturnabilityYes
Sustainable PackagingNo
Height Usefulcut-out: 375 mm
Width Realcut-out: 215 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP55 conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Nema Degree Of ProtectionNEMA 1 UL 508, NEMA 3R UL 508, NEMA 12 UL 508
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Nema Size2
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- drive flush mounting kit
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
