Schneider Electric

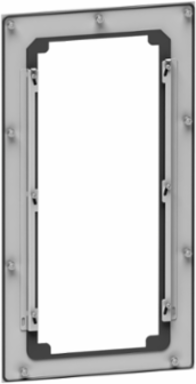

Schneider Electric NSYPTDS3 KIT FLUSH-MOUNTING POUR ATV T3

KIT FLUSH-MOUNTING POUR ATV T3
  • MPN: NSYPTDS3
  • PPN: SCH-NSYPTDS3

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$689.11/ EA

    Description

    KIT FLUSH-MOUNTING POUR ATV T3

    Specifications

    Specifications

    Nema Size
    3
    Range Compatibility
    Altivar variable speed drive ATV630 || Altivar variable speed drive ATV930 || Spacial SF and SM enclosures 600 mm x 300 mm || Spacial S3D enclosure 600 mm x 300 mm
    Accessory / Separate Part Category
    mounting and fixing accessory
    Mounting Location
    1 back of enclosure mounting plate || 2 inside enclosure
    Range
    Spacial
    Product Specific Applicationprocess and utilities
    Kit Composition1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts || 1 x fixing accessories || 1 x drilling template || 1 x instruction sheet || 1 x edge protector profile, plastic
    Product Or Component Typedrive flush mounting kit
    Motor Power Kw7.5 kW 220/240 V || 11 kW 220/240 V || 15 kW 380/480 V || 18.5 kW 380/480 V || 22 kW 380/480 V

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Mercury Free
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Rohs Exemption InformationYes
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Width
    external 295 mm || cut-out 250 mm
    Services
    configuration of enclosure pre-drilled back || factory installation drive flush mounting kit
    Net Weight
    2.452 kg
    Permanent Permissible Load
    14.3 kg
    Heightexternal 555 mm || cut-out 503 mm
    Colourgrey RAL 7035)
    Depthwall-enclosure separation 22 mm

    Environment

    Ip Degree Of Protection
    IP55 IEC 60529
