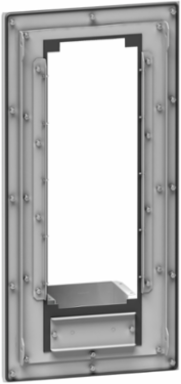

Schneider Electric NSYPTDS4 Drive Flush Mounting Kit, IP55, 28.7 kg Load Capacity, 800 mm Height

MPN: NSYPTDS4
PPN: SCH-NSYPTDS4
UNSPSC: 39122004

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$749.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric NSYPTDS4 Drive Flush Mounting Kit is designed to provide a robust and efficient solution for mounting drives in various settings. With an IP55 rating, this kit ensures reliable protection against dust and water ingress, making it ideal for industrial environments. It boasts an impressive load capacity of 28.7 kg, accommodating a wide range of equipment. At 800 mm in height, this mounting kit not only optimizes space but also enhances accessibility, allowing for easier maintenance and operation of motors and drives. This integration of durability and functionality is essential for anyone looking to streamline automation and control processes.

Features

Allowing the hot part to be isolated.
IP55 according to IEC 60529
Made of steel for robustness
Protection seal supplied for frame cut-out

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Width	12.8 in

Height	28.94 in

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Kit Composition	1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts, 1 x fixing accessories, 1 x drilling template, 1 x instruction sheet1 x edge protector profile, plastic, 1 x fan support, 1 x cover for fan protection
Mounting Location	1 back of enclosure mounting plate, 2 inside enclosure
Local Publishable Date	2025-09-23
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Permanent Permissible Load	28.7 kg
Product Or Component Type	drive flush mounting kit
Range	PanelSeT
Services	configuration of enclosure pre-drilled backfactory installation drive flush mounting kit
Height Nominal	external: 800 mm
Width Nominal	external: 385 mm
Accessory / Separate Part Category	mounting and fixing accessory
Customs Code	7326908688

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Motor Power Kw	15 kW 220/240 V, 18.5 kW 220/240 V, 22 kW 220/240 V30 kW 380/480 V, 37 kW 380/480 V, 45 kW 380/480 V
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	process and utilities
Returnability	Yes
Sustainable Packaging	No
Height Useful	cut-out: 735 mm
Width Real	cut-out: 325 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Nema Size	4
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Nema Degree Of Protection	NEMA 1 UL 508, NEMA 3R UL 508, NEMA 12 UL 508
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Ip Degree Of Protection	IP55 conforming to IEC 60529
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN
