Schneider Electric

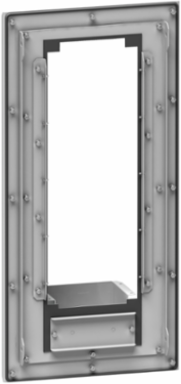

Schneider Electric NSYPTDS5 KIT FLUSH-MOUNTING POUR ATV T5

KIT FLUSH-MOUNTING POUR ATV T5
  • MPN: NSYPTDS5
  • PPN: SCH-NSYPTDS5

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$803.75/ EA

    Description

    KIT FLUSH-MOUNTING POUR ATV T5

    Specifications

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP100104EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Specifications

    Nema Size
    5
    Range Compatibility
    Altivar variable speed drive ATV630 || Altivar variable speed drive ATV930 || Spacial SF and SM enclosures || Altivar variable speed drive ATV340
    Accessory / Separate Part Category
    mounting and fixing accessory
    Mounting Location
    1 back of enclosure mounting plate || 2 inside enclosure
    Range
    Spacial
    Product Specific Applicationprocess and utilities
    Kit Composition1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts || 1 x fixing accessories || 1 x drilling template || 1 x instruction sheet || 1 x edge protector profile, plastic || 1 x fan support || 1 x cover for fan protection
    Product Or Component Typedrive flush mounting kit
    Motor Power Kw30 kW 220/240 V || 37 kW 220/240 V || 45 kW 220/240 V || 55 kW 380/480 V || 75 kW 380/480 V || 90 kW 380/480 V

    Complementary

    Width
    cut-out 380 mm || external 427 mm
    Services
    configuration of enclosure pre-drilled back || factory installation drive flush mounting kit
    Net Weight
    11.086 kg
    Permanent Permissible Load
    58.5 kg
    Heightexternal 975 mm || cut-out 920 mm
    Colourgrey RAL 7035)
    Depthwall-enclosure separation 205.5 mm

    Environment

    Ip Degree Of Protection
    IP55 IEC 60529
