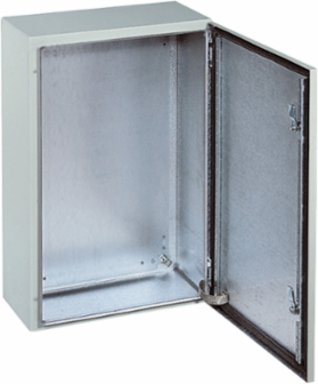

Schneider Electric NSYS3HF4320P Spacial Enclosure 400mm x 300mm x 200mm EMC-IP55 Grit 10

  • MPN: NSYS3HF4320P
  • PPN: SCH-NSYS3HF4320P

CAD

$1209.06

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric NSYS3HF4320P Spacial Enclosure is expertly designed for demanding industrial applications, offering a robust solution for housing electrical components. With an ample size of 400mm x 300mm x 200mm, this enclosure not only ensures a secure environment for your equipment but is also rated for EMC and IP55, which means it provides excellent protection against dust and water ingress. Constructed to withstand challenging conditions, it features a grit finish that enhances durability and resistance to impact. Ideal for wall mounting, this enclosure is a practical choice for professionals looking to safeguard sensitive electronics in both indoor and outdoor settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain

Physical Attributes

Color
Gray RAL 7035)
Enclosure Nominal Width
300 mm
Enclosure Nominal Height400 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 body, 1 door with lock, 1 mounting plate
Carbon Footprint Of The End-of-life Phase [C1 To C4]
20 kg CO2 eq., 19.71378754194817
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
41 kg CO2 eq., 40.85757218383202
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Door Type
Solid
Energy Efficiency Optimized
False
Material
body aluzinc
Number Of Doors
front face 1
Product Name
PanelSeT S3HF
Range
PanelSeT
Returnability
No
Surface Finish
epoxy-polyester powder
Total Lifecycle Carbon Footprint
79 kg CO2 eq.
Pep Code
ENVPEP1001004EN
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate Agency
IEC 60529
Package Weight(Lbs)
8.368 kg
Warranty (In Months)
18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]16.61318021647698, 17 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.6486386312534325, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-14
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device ApplicationIndustrial Application
Electromagnetic CompatibilityEMC immunity
Lock Type3 mm double-bar lock
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403200090

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
78.8331785735106
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP1001004EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP55
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
compact enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
