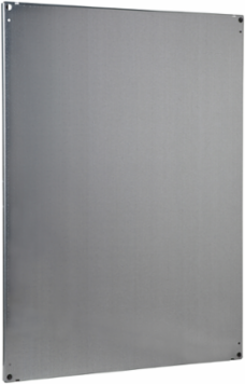

Schneider Electric NSYMP188 Galvanized Steel Mounting Plate 1800mm x 800mm, Load Capacity 600kg

Galvanized Steel Mounting Plate 1800mm x 800mm, Load Capacity 600kg
  • MPN: NSYMP188
  • PPN: SCH-NSYMP188

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$377.58/ EA

    Description

    Spacial SF/SM mounting plate. H is1800 x W is800 mm. Depth is 27 mm. Multi-purpose mounting accessory. Fixing mode by brackets. Permanent permissible load is 500 kg intermediate position, 600 kg on back. Galvanised steel. 1 mounting plate, 2 sliding shoes incl.

    Specifications

    Specifications

    Range Compatibility
    Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX
    Accessory / Separate Part Category
    mounting accessory
    Product Or Component Type
    mounting plate
    Device Application
    multi-purpose
    Range
    Spacial
    Materialgalvanised steel
    Quantity Per Setset of 1
    Device Composition1 mounting plate || 2 sliding shoes
    Mounting Plate Descriptionplain

    Complementary

    Width
    nominal 800 mm || fixing centers 650 mm || real 696 mm
    Maximum Load
    300 kg/m²
    Fixing Mode
    by fixing brackets
    Heightfixing centers 1650 mm || nominal 1800 mm || real 1697 mm
    Depth27 mm
    Permanent Permissible Load500 kg intermediate position || 600 kg back of the enclosure

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2202003EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Contractual warranty

    Warranty
    18 months
