Spacial SM Compact Enclosure 1600x600x300 mm, IP55, 85 kg

Documentation & Downloads

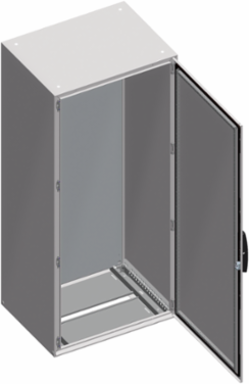

Schneider Electric NSYSM16630P Spacial SM Compact Enclosure 1600x600x300 mm, IP55, 85 kg

MPN: NSYSM16630P
PPN: SCH-NSYSM16630P

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

CAD

$2049.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

The Schneider Electric NSYSM16630P Spacial SM Compact Enclosure is designed to provide robust protection and organization for your automation, data, and communication equipment. Measuring 1600x600x300 mm, this enclosure offers an IP55 rating, ensuring reliable performance in a variety of environments by safeguarding against dust and water ingress. Weighing 85 kg, it is engineered for stability and durability, making it an ideal choice for IT enclosures and racks. With its compact form factor, it is perfectly suited for efficient use of space while accommodating essential components securely.

Documentation & Downloads

Specifications

Additional

IP Rating: IP55 IEC 60529

Net Weight: 85 kg

Installation Type: Floor-standing

Surface Finish: Epoxy-polyester powder

Number of Doors: 1

Lock Type: 4 points lock, handle with 5 mm double bar insert

Number of Doors: 1

Cable Entry: 1 entry

Certifications: BV, DNV, UL

RoHS Exemption Information: Yes

Accessibility For Operation: Front

IK Degree of ProtectionIK10 IEC 62262

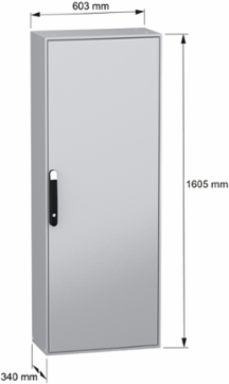

Enclosure Dimensions1600 x 600 x 300 mm

MaterialGalvanised steel (mounting plate), Steel (body and door), Zamak (hinge)

ColorEnclosure Gray RAL 7035, Handle Black RAL 9005

Door Opening SideReversible 120°

Mounting PlatePlain, galvanised steel

Type of Gland PlateStandard

StandardsIEC 62208

Country of OriginES (Spain)

Warranty18 months
