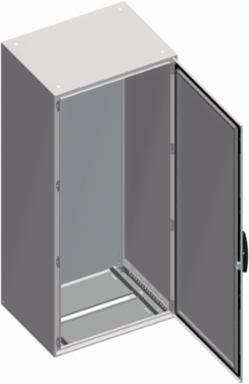

Schneider Electric NSYSM14830P Spacial SM compact enclosure with mounting plate - 1400x800x300 mm

MPN: NSYSM14830P
PPN: SCH-NSYSM14830P

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1991.77/ EA

Qty:

Loading add to cart quantity...

Description

Spacial SM monobloc compact steel enclosure with plain front door. 1400 x 800 x 300 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

Specifications

Environment

Product Certifications: UL || DNV || BV

Standards: IEC 62208

Ik Degree Of ProtectionIK10 IEC 62262

Ip Degree Of ProtectionIP55 IEC 60529

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP110923EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity Profile: N/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Accessibility For Operation: front

Lock Type: 4 points lock, handle with 5 mm double bar insert

Door Opening Side: reversible 120 °)

Body Type: front part forming a rigid frame with welded corners || single piece body with welded rear panel

Surface Finish: epoxy-polyester powder

Colour: enclosure grey RAL 7035) || handle black RAL 9005)

Mounting Plate Description: plain

Type Of Gland Platestandard

Net Weight73 kg

Number Of Doorsfront 1

Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak

Cable Entry1 entry

Door Typeplain

Specifications

Removable Parts: door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws

Product Or Component Type: compact enclosure

Device Composition: 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 mounting plate || 1 door

Range: Spacial

Device Application: multi-purpose

Installation Accessory Typefloor-standing

Product NameSpacial SM

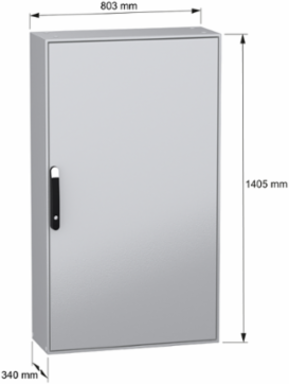

Enclosure Nominal Height1400 mm

Enclosure Nominal Depth300 mm

Enclosure Nominal Width800 mm
