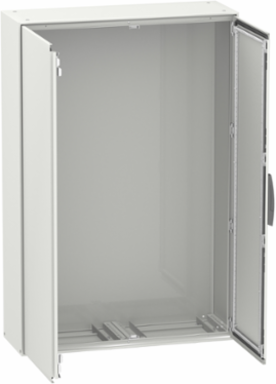

Schneider Electric NSYSM1816402DP Spacial SM compact enclosure with mounting plate - 1800x1600x400 mm

MPN: NSYSM1816402DP
PPN: SCH-NSYSM1816402DP

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$4455.71/ EA

Qty:

Loading add to cart quantity...

Description

Spacial SM compact enclosure with mounting plate - 1800x1600x400 mm

Specifications

Environment

Product Certifications: BV || DNV || UL

Standards: IEC 62208

Ik Degree Of ProtectionIK10 IEC 62262

Ip Degree Of ProtectionIP55 IEC 60529

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP110923EN

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Accessibility For Operation: front

Type Of Gland Plate: standard

Surface Finish: epoxy-polyester powder

Colour: enclosure grey RAL 7035) || handle black RAL 9005)

Door Type: plain

Door Opening Side: left 120 °) || right 120 °)

Number Of Doors: front 2

Body Typefront part forming a rigid frame with welded corners || single piece body with welded rear panel

Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak

Cable Entry1 entry

Lock Type4 points lock, handle with 5 mm double bar insert

Net Weight201 kg

Mounting Plate Descriptionplain

Specifications

Removable Parts: door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws

Product Or Component Type: compact enclosure

Device Composition: 1 body || 2 door || 2 cable gland plate || 1 locking system with handle door || 1 blocking system left door || 4 mounting plate bracket || 1 mounting plate

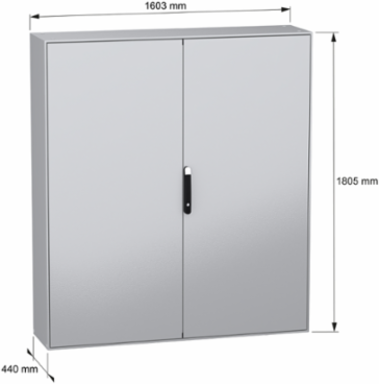

Enclosure Nominal Depth: 400 mm

Enclosure Nominal Width: 1600 mm

Installation Accessory Typefloor-standing

Product NameSpacial SM

Enclosure Nominal Height1800 mm

Device Applicationmulti-purpose

RangeSpacial
