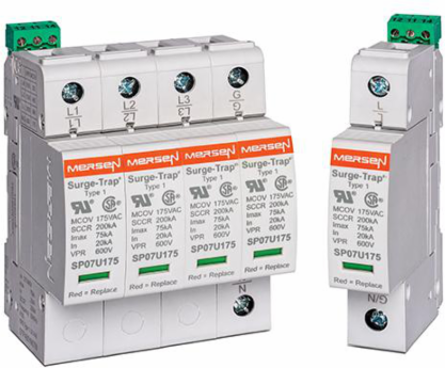

Mersen STP1201PGM SPD - Plugable STP Series 120V L-L VPR V L-L MCOV V 50 kA 1-pole Microswitch
- MPN: STP1201PGM
- UPC: 782001417178
- PPN: FER-STP1201PGM
CAD
$295.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surge-Trap® Pluggable Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen’s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.
Features
- Easy installation or retrofit
- DIN-rail mountable
- Fail-safe, self-protected design
- Remote indicator
- Visual indicator
- IP20 finger-safe design
- Small footprint
- No additional overcurrent protection devices required
- Easy to replace modules
- 2-year warranty
Documentation & Downloads
Specifications
Key Specifications
| Sell Pack Height | 2.75 in |
|---|---|
| Product Length | 3.58 in |
| Wiring range | #6 to #14 AWG |
| ROHS Compliant | Yes |
| Product Height | 2.7 in |
| Product Width | 0.7 in |
| Sell Pack Width | 2.88 in |
| Connection/Terminal Type | Box |
| Sell Pack Quantity | 3 Each |
| System Configuration | Single Phase |
| UL SPD Type | Type 1 Component Assembly |
| MOV Response Time | <25 ns |
| MCOV L-N | 180 V |
| VPR L-N | 600 V |
| Number of Poles | 1-pole |
| VPR L-G | 600 V |
| Product Weight | 0.34 lb |
|---|---|
| Housing Material | PET (Polyethelene Terphthalate) |
| Installation Mounting | DIN Rail |
| Nominal Operating Volt Rating (Un) | 120 V |
| Number of Wires | 2 Wire |
| Protection Modes | L-G, L-N |
| Sell Pack Length | 4.88 in |
| AC or DC | AC |
| Nominal Discharge Current (In) (8/20) | 20 kA |
| Indication System Type | Microswitch |
| Max Discharge Current : Imax (8/20) | 50 kA per phase |
| Short Circuit Current Rating (SCCR) | 200 (most models) kA |
| Indication System | Yes |
| MCOV L-G | 180 V |
| Replacement Plug L1 | SP180U |
