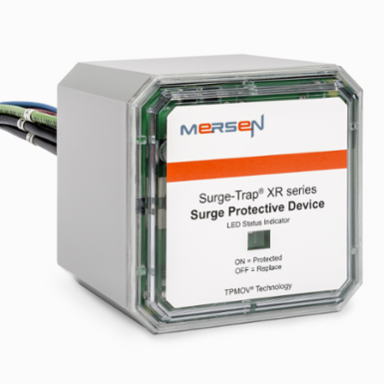

Mersen STXR600D05A Surge-Trap Type 1 SPD 600V L-L 2500V L-L 50 kA with LED & Remote
- MPN: STXR600D05A
- UPC: 782001470319
- PPN: FER-STXR600D05A
CAD
$723.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Surge-Trap STXR Series UL listed Type 1 SPD, a leading choice in the STX series, meets the UL1449 5th Edition standards and is an excellent replacement for outdated surge arrestors. This series incorporates TPMOV® technology, ensuring it is one of the safest options available. The STXR series boasts a compact design and offers flexibility for line or load installation, making it ideal for both branch panel and individual equipment protection.
Specifications
Key Specifications
| Frequency (Hz) | 50/60 Hz |
|---|---|
| UL SPD Type | Type 1 |
| AC or DC | AC |
| System Configuration | 3-Phase Delta |
| Indication System Type | LED and Remote Audible Alarm |
| Housing Material | Polycarbonate |
| MCOV L-G | 690 V |
| VPR L-G | 2500 V |
| Width | 3.35 in |
| Height | 3.35 in |
| ROHS Compliant | Yes |
|---|---|
| Format | STXR |
| Nominal Discharge Current (In) (8/20) | 20 kA |
| Indication System | Yes |
| Enclosure NEMA Type | 4X Non-Metallic |
| Installation Mounting | Panel Mount |
| MCOV L-L | 840 V |
| VPR L-L | 2500 V |
| Length | 3.25 in |
| Weight | 1.6 lb |
