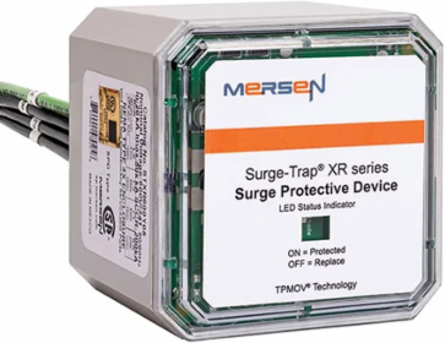

Mersen STXR600Y05 Surge-Trap® Type 1 SPD 600Y/347V 2500V 50 kA LED Ind, Panel Mount
- MPN: STXR600Y05
- UPC: 782001469993
- PPN: FER-STXR600Y05
CAD
$572.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Surge-Trap STXR Series UL listed Type 1 SPD, a leading choice in the STX series, meets the UL1449 5th Edition standards and is an excellent replacement for outdated surge arrestors. This series incorporates TPMOV® technology, ensuring it is one of the safest options available. The STXR series boasts a compact design and offers flexibility for line or load installation, making it ideal for both branch panel and individual equipment protection.
Features
- Engineered explicitly for 3-phase, 600Y/347V Wye electrical architectures, this device provides a seamless mechanical and electrical fit for high-voltage industrial services. It eliminates system compatibility guesswork, preventing catastrophic equipment failure and keeping your primary distribution lines safely aligned with Canadian and northern US utility standards.
- Featuring a robust 50 kA per phase surge current rating powered by Mersen’s advanced Thermally Protected Metal Oxide Varistor (TPMOV) technology, this unit safely dissipates massive transient overvoltages. The integrated thermal disconnect design isolates the varistors under extreme runaway conditions, eliminating the risk of catastrophic smoke or fire hazards within your control panel.
- Certified as a Type 1 Surge Protective Device, this module offers ultimate installation flexibility, allowing for code-compliant mounting anywhere from the line side of the main service entrance to individual branch panels. It eliminates the need for external, dedicated overcurrent protection (fuses or breakers), saving valuable panel space and significantly reducing installation hardware costs.
- Housed in a compact, polycarbonate NEMA 4X weather-proof enclosure, this unit is engineered for indoor or outdoor panel mounting via a standard ¾-inch nipple. The rugged casing resists UV rays, moisture, and corrosive chemical washdowns, while high-visibility green LEDs provide instant visual confirmation of active surge protection across all phases.
Documentation & Downloads
Specifications
Key Specifications
- Frequency (Hz)
- 50/60 Hz
- UL SPD Type
- Type 1
- AC or DC
- AC
- System Configuration
- 3-Phase Wye
- Indication System Type
- LED
- Housing Material
- Polycarbonate
- MCOV L-G
- 840 V
- MCOV L-N
- 420 V
- VPR L-L
- 2500 V
- Width
- 3.35 in
- Height
- 3.35 in
ROHS CompliantYes
FormatSTXR
Nominal Discharge Current (In) (8/20)20 kA
Indication SystemYes
Enclosure NEMA Type4X Non-Metallic
Installation MountingPanel Mount
MCOV L-L840 V
VPR L-G2500 V
VPR L-N1500 V
Length3.25 in
Weight1.5 lb
