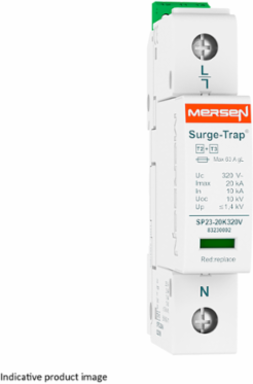

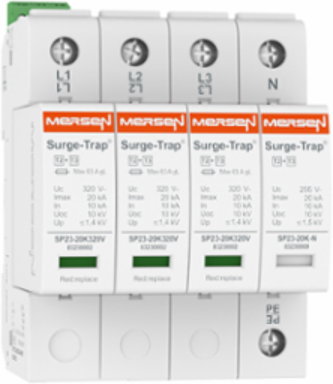

Mersen 83230100 Surge-Trap Pluggable SPD, 20kA, 1-Pole, Uc 150V, DIN-Rail Mountable
- MPN: 83230100
- PPN: FER-83230100
CAD
$250.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
STP T23 20 is the series of combined Type 2+3/Class II+III devices for discharging voltage surges while providing a very fine voltage protection level, in accordance with EN/IEC 61643-11. Suitable as the final stage of protection in panels with Type 2 protection devices installed upstream such as STP T2 40 SPDs. These SPDs should be installed as close as possible to the equipment being protected.
Features
- TNS, TNC, TT and IT networks
- PLC friendly solutions (LCF) for Power Line Communications
- DIN-rail mountable, plug-in format
- Visual and remote end of life indicators
- Reversible chassis to allow cable entry from above or below
- Mechanically coded cartridges to avoid cartridge replacement errors
Documentation & Downloads
Specifications
Key Specifications
- Maximum discharge current (8/20μs)
- 20kA per phase
- Combined voltage pulse Uoc (1.2/50μs)
- 10kV
- Back-up fuse
- 63 A gG
- Short Circuit Withstand Isccr
- 25 kA
- Combined Discharge Voltage 1-2 50 Uoc
- 10 kV
- Uc L-N
- 150 V
- Country Of Origin
- ES
- Product Brand
- Surge-Trap®
- Number Of Poles
- 1-Pole
- Housing Material
- PA66 CT1; V-0
- Ac Or Dc
- AC
- Nominal Discharge Current
- 10kA
- System Configuration
- TT. TNS. TNC
Nominal discharge current (8/20μs)10kA per phase
Un(L-N/L-L)120/208V, 230/400V, 277/480V and 400/690V
Torque Rating35.4 lb-in
Response Time25 ns
Nominal Operating Volt Rating Un120 V
Up At In L-N≤0.8 kV
Product LineSurge-Trap® Pluggable STPT23 Series - 20kA
Wire TypeRigid: 6…35mm² / Stranded: 6…25mm²
Iec Spd TypeType 2+3 / Class II+III
Max Back-Up Fuse63 A gG
Max Discharge Current Imax 8 2020kA
Replacement Plug L-NSP23-20K150V
