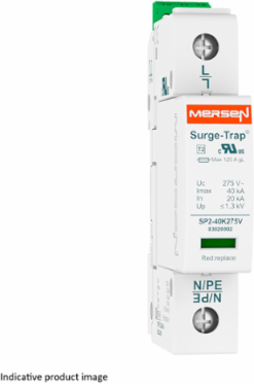

Mersen 83020101 Surge-Trap® Pluggable Type 2 SPD, 30kA, 750V, 1 Pole, Remote Indicators

Surge-Trap® Pluggable Type 2 SPD, 30kA, 750V, 1 Pole, Remote Indicators
Surge-Trap® Pluggable Type 2 SPD, 30kA, 750V, 1 Pole, Remote Indicators
  • MPN: 83020101
  • UPC: 8435297850632
  • PPN: FER-83020101

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$109.03/ EA

Description

STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643-11 and certified UL 1449 4th Ed. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.

Features

  • TNS, TNC, TT and IT networks
  • DIN-rail mountable, plug-in format
  • Visual and remote end of life indicators
  • Reversible chassis to allow cable entry from above or below
  • Mechanically coded cartridges to avoid cartridge replacement errors

Specifications

Specifications

Maximum discharge current (8/20μs)
40kA per phase
Un(L-N/L-L)
48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher
File UL
E468946
Min Operating Temp
-40 °C
Torque Rating
35.4 lb-in
Response Time
25 ns
Nominal Operating Volt Rating Un
690 V
Up At In L-N
≤3.0 kV
Country Of Origin
ES
Product Brand
Surge-Trap®
Number Of Poles
1-Pole
Housing Material
PA66 CT1; V-0
Ac Or Dc
AC
Nominal Discharge Current
15kA
System Configuration
TNC. IT
Nominal discharge current (8/20μs)20kA per phase
Back-up fuse125 A gG
Max Operating Temp85 °C
Short Circuit Current Rating Sccr50 ... 100 kA
Short Circuit Withstand Isccr25 kA
Mcov L-L750
Uc L-N750 V
Vpr L-L2500 V
Product LineSurge-Trap® Pluggable STPT2 Series - 40kA
Wire TypeRigid: 6…35mm² / Stranded: 6…25mm²
Iec Spd TypeType 2 / Class II
Max Back-Up Fuse125 A gG
Max Discharge Current Imax 8 2030kA
Replacement Plug L-NSP2-30K750V
