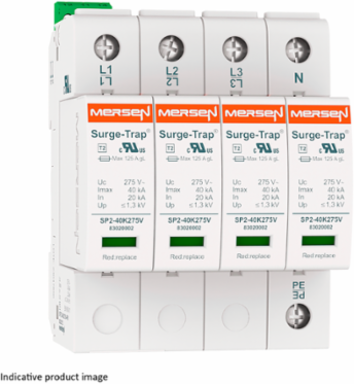

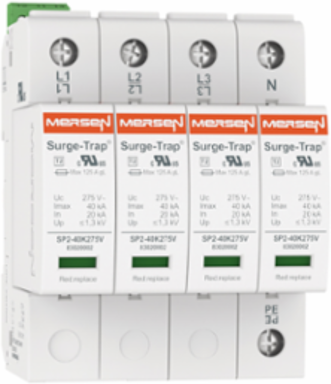

Mersen 83020155 Surge-Trap® Pluggable Type 2 SPD, 4 Pole, 40kA, 320V, DIN-Rail Mountable
Mersen 83020155 Surge-Trap® Pluggable Type 2 SPD, 4 Pole, 40kA, 320V, DIN-Rail Mountable
- MPN: 83020155
- PPN: FER-83020155
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1184.38/ EA
Description
STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643-11 and certified UL 1449 4th Ed. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.
Features
- TNS, TNC, TT and IT networks
- DIN-rail mountable, plug-in format
- Visual and remote end of life indicators
- Reversible chassis to allow cable entry from above or below
- Mechanically coded cartridges to avoid cartridge replacement errors
Specifications
Specifications
- Maximum discharge current (8/20μs)
- 40kA per phase
- Un(L-N/L-L)
- 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher
- File UL
- E468946
- Min Operating Temp
- -40 °C
- Torque Rating
- 35.4 lb-in
- Response Time
- 25 ns
- Mcov L-L
- 640 V
- Mcov N-G
- 320 V
- Uc L-Pe
- 320 V
- Up At In L-Pe
- ≤1.5 kV
- Vpr L-L
- 2000 V
- Vpr N-G
- 1000 V
- Product Line
- Surge-Trap® Pluggable STPT2 Series - 40kA
- Wire Type
- Rigid: 6…35mm² / Stranded: 6…25mm²
- Iec Spd Type
- Type 2 / Class II
- Max Back-Up Fuse
- 125 A gG
- Max Discharge Current Imax 8 20
- 40kA
- Replacement Plug L-N
- SP2-40K320V
Nominal discharge current (8/20μs)20kA per phase
Back-up fuse125 A gG
Max Operating Temp85 °C
Short Circuit Current Rating Sccr50 ... 100 kA
Short Circuit Withstand Isccr25 kA
Mcov L-G320 V
Mcov L-N320 V
Nominal Operating Volt Rating Un277 / 480 V
Uc L- Pe320 V
Vpr L-G1000 V
Vpr L-N2000 V
Country Of OriginES
Product BrandSurge-Trap®
Number Of Poles4-Pole
Housing MaterialPA66 CT1; V-0
Ac Or DcAC
Nominal Discharge Current20kA
System ConfigurationTT. TNS
