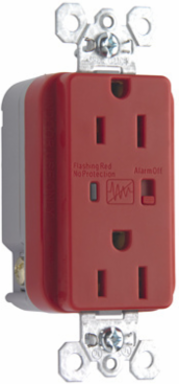

Pass & Seymour 5262REDSP 15A Surge Protective Duplex Receptacle, 125V, Red, 1.7 Inch Width, 2.75 Inch Height
- MPN: 5262REDSP
- UPC: 785007528022
- PPN: P-S-5262REDSP
- UNSPSC: 39121406
CAD
$116.87
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A Surge Protective Duplex Receptacle, 125V, Red, 1.7 Inch Width, 2.75 Inch Height
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 300 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.75 in |
| Color | Red |
| Amperage | 15.0 A |
| Standard | UL 498; 1449 |
| Special Features | Impact resistant, LED indicator, back & side wire\ |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Wall Plate Included | No |
| NEMA Configuration Code | 5-15R |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Depth | 0.875 in |
|---|---|
| Width | 1.7 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Phase | Three |
| Warranty Type | 1-Year Limited Warranty |
| Indoor/Outdoor | Indoor |
| Number of Poles | Double Pole |
| Wire Size | 14 - 10 AWG |
| Features | Single Piece Plated Steel Mounting Strap; Surge Protection |
| Number of Receptacles | 2.0 |
| Outlet Type | Straight Blade; Surge Protected |
