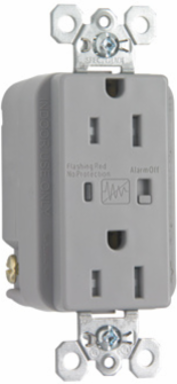

Pass & Seymour TR5262GRYSP Tamper-Resistant Heavy Duty Surge Protective Duplex Receptacle, 15A 125V, Gray
- MPN: TR5262GRYSP
- UPC: 785007019438
- PPN: P-S-TR5262GRYSP
CAD
$122.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Heavy Duty Surge Protective Duplex Receptacle, 15A 125V, Gray
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.4 in
- Height
- 2.75 in
- Color
- Gray
- Product Line
- Pass & Seymour
- Amperage
- 15.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Features
- Indicator Lights
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-15R
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
Special FeaturesTamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator).
Width1.7 in
Country of OriginChina
PhaseSingle
Voltage125.0 V
Indoor/OutdoorIndoor
FeaturesAudible Alarm
Is Tamper-ResistantYes
FeaturesSurge Protection
Outlet TypeStraight Blade
Outlet TypeSurge Protected
Application SectorCommercial
Environmental ConditionsUL94 V2
Wire Connection TypeScrew Terminals
FeaturesSingle Piece Plated Steel Mounting Strap
