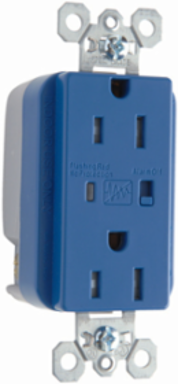

Pass & Seymour TR5262BLSP Tamper-Resistant Surge Protective Duplex Receptacle, 15A, 125V, Blue
- MPN: TR5262BLSP
- UPC: 785007020694
- PPN: P-S-TR5262BLSP
CAD
$122.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Tamper-Resistant Surge Protective Duplex Receptacle, 15A, 125V, Blue
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.4 in |
|---|---|
| Height | 2.75 in |
| Width | 1.7 in |
| Product Line | Pass & Seymour |
| Amperage | 15.0 A |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Indicator Lights |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Outlet Type | Tamper-Resistant |
| NEMA Configuration Code | 5-15R |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). |
|---|---|
| Color | Blue |
| Country of Origin | China |
| Phase | Single |
| Voltage | 125.0 V |
| Indoor/Outdoor | Indoor |
| Features | Audible Alarm |
| Is Tamper-Resistant | Yes |
| Features | Surge Protection |
| Outlet Type | Straight Blade |
| Outlet Type | Surge Protected |
| Application Sector | Commercial |
| Environmental Conditions | UL94 V2 |
| Wire Connection Type | Screw Terminals |
| Features | Single Piece Plated Steel Mounting Strap |
