Catamount

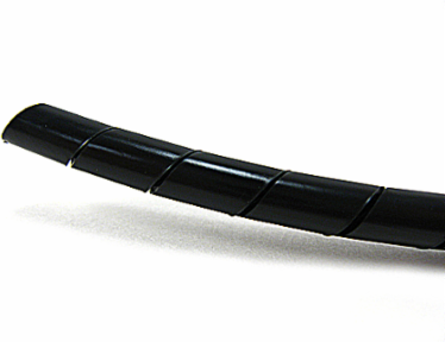

Catamount SRPE-1000F-0-C Spiral Wrap 1 Inch Outside Diameter, Black Polyethylene, 30.48m Reel

Spiral Wrap 1 Inch Outside Diameter, Black Polyethylene, 30.48m Reel
  • MPN: SRPE-1000F-0-C
  • PPN: T-B-SRPE-1000F-0-C

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$343.32/ EA

Description

Forward Cut Spiral Wrap, Black Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Weather and Ultraviolet Resistant, Outside Diameter of 25.4mm (1.0 Inches), Pitch of 28.19mm (1.11 Inches), Nominal Wall Thickness of 1.78mm (0.07 Inches), 30.48m Reel (100 Feet)

Features

  • Perfect for protection of bundles from .063 to 7 inch diameters.
  • Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
  • Available in 3 materials.
  • Application Tools: SR-100

Specifications

European Specifications (ETIM)

ETIM
EC002604 Cable bundle hose
Nominal diameter
25.4mm
Material quality
Polyethylene
Transparent
Y
UV resistant
Y
Bundle diameter
25.4-177.8mm
ModelSpiral hose
MaterialPlastic
ColourBlack
Fire resistant propertiesAccording to UL94 HB
Wall thickness1.78mm

North American Specifications (UNSPSC)

UNSPSC
39131604 Spiral wrapping
Brand Name
Catamount
Special Features
Perfect for protection of bundles from .063 to 7 inch diameters.
Outside Diameter
1.000
Minimum Bundle Diameter
1.000
Material
Weatherable Polyethylene
IGCC5395 Spiral wrapping
TypeSpiral Wrap
ColorBlack
Maximum Bundle Diameter7.000
Pitch1.110
Wall Thickness0.070

Packaging

Outer Quantity
1
Weight Uom
8.08 lbs. Each
Outer Dimensions (inches)20.3x20.3x8.8

Downloads
