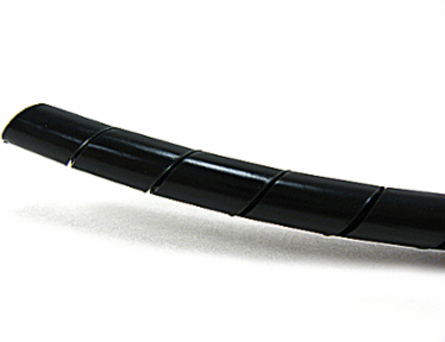

Catamount SRPE-375F-0-C Spiral Wrap 0.375 Inch OD, Black Polyethylene, 100 Feet Length, UV Resistant
- MPN: SRPE-375F-0-C
- UPC: 728494067599
- PPN: T-B-SRPE-375F-0-C
CAD
$129.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Forward Cut Spiral Wrap, Black Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Weather and Ultraviolet Resistant, Outside Diameter of 9.53mm (0.375 Inches), Pitch of 11.13mm (0.438 Inches), Nominal Wall Thickness of 1.32mm (0.052 Inches), 30.48m Reel (100 Feet)
Features
- Perfect for protection of bundles from .063 to 7 inch diameters.
- Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
- Available in 3 materials.
- Application Tools: SR-100
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 6
- Weight Uom
- 2.92 lbs. Each
Inner Dimensions (inches)11x11x3.5
Outer Dimensions (inches)19.25x14.5x13.75
European Specifications (ETIM)
- ETIM
- EC002604 Cable bundle hose
- Nominal diameter
- 9.53mm
- Material quality
- Polyethylene
- Transparent
- N
- UV resistant
- Y
ModelSpiral hose
MaterialPlastic
ColourBlack
Fire resistant propertiesAccording to UL94 HB
Wall thickness1.32mm
North American Specifications (UNSPSC)
- UNSPSC
- 39131604 Spiral wrapping
- Brand Name
- Catamount
- Special Features
- Perfect for protection of bundles from .063 to 7 inch diameters.
- Outside Diameter
- 0.375 Inches/9.53mm
- Minimum Bundle Diameter
- 0.313 Inches/7.9mm
- Material
- Weatherable Polyethylene
IGCC5395 Spiral wrapping
TypeSpiral Wrap
ColorBlack
Maximum Bundle Diameter3.0 Inches/76.2mm
Length100 ft ; 30.48 m
Wall Thickness0.052 Inches/1.32mm
