Catamount

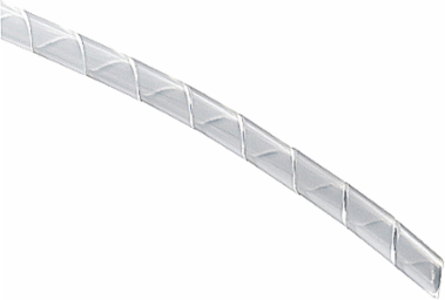

Catamount SRFR-250F-WH-C Spiral Wrap, 0.250 Inch OD, 0.375 Inch Pitch, Flame Retardant Polyethylene

Spiral Wrap, 0.250 Inch OD, 0.375 Inch Pitch, Flame Retardant Polyethylene
  • MPN: SRFR-250F-WH-C
  • PPN: T-B-SRFR-250F-WH-C

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$130.03/ EA

Description

Forward Cut Spiral Wrap, White Flame Retardant Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Outside Diameter of 6.35mm (0.250 Inches), Pitch of 9.53mm (0.375 Inches), Nominal Wall Thickness of 1.14mm (0.045 Inches), 30.48m Reel (100 Feet)

Features

  • Perfect for protection of bundles from .063 to 7 inch diameters.
  • Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
  • Available in 3 materials.
  • Application Tools: SR-100

Specifications

Packaging

Outer Quantity
12
Weight Uom
1.95 lbs. Each
Outer Dimensions (inches)18x12x13

North American Specifications (UNSPSC)

UNSPSC
39131604 Spiral wrapping
Brand Name
Catamount
Special Features
Perfect for protection of bundles from .063 to 7 inch diameters.
Outside Diameter
0.250
Minimum Bundle Diameter
0.188
Material
Flame Retardant Polyethylene
IGCC5395 Spiral wrapping
TypeSpiral Wrap
ColorWhite
Maximum Bundle Diameter2.000
Pitch0.375
Wall Thickness0.045

European Specifications (ETIM)

ETIM
EC002604 Cable bundle hose
Nominal diameter
6.35mm
Material quality
Polyethylene
Transparent
N
Wall thickness
1.14mm
ModelSpiral hose
MaterialPlastic
ColourWhite
Fire resistant propertiesAccording to UL94 HB
