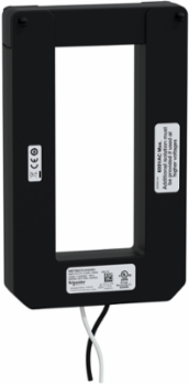

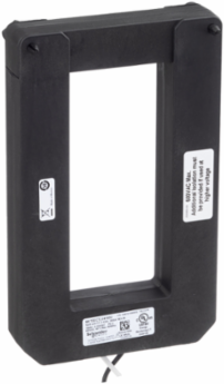

Schneider Electric METSECTLV4240U Split Core Current Transformer 2400A 0.333V 8ft Lead
- MPN: METSECTLV4240U
- PPN: SCH-METSECTLV4240U
CAD
$327.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Split Core Current Transformer from Schneider Electric is engineered for precise measurement in high-current applications, providing a reliable solution for monitoring electrical systems up to 2400A. With a secondary voltage output of 0.333V, it delivers accurate readings essential for system analysis and optimization. Its 8-foot lead adds flexibility for installation, making it suitable for various environments. Designed for ease of use, this current transformer simplifies the integration into existing systems, enhancing your capability to manage power consumption effectively.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

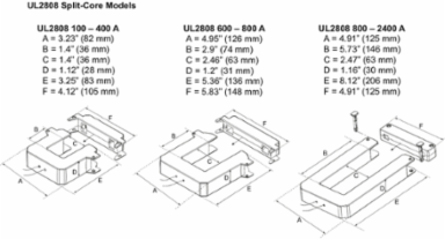

- Width
- 4.91 in
Height8.12 in
Depth1.16 in
Complementary Attributes
- Line Rated Current
- 2400 A
Important Information Attributes
- Network Frequency
- 50 Hz, 60 Hz
- Certificate Agency
- UL 2808, IEC 61869-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.354966368076719
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.780838583597889
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2511068_V1-EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2508
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Current Transformer Type
- split core
- Electrical Connection
- flying lead 8 ft 16 AWG) 600 V
- Measurement Accuracy
- 1 %
- Product Or Component Type
- current transformer
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Technical data:& 10Output voltage: 0.333 V& 10Line Rated Current:: 2400 A& 10Network Frequency: 50 Hz/60 Hz& 10Electrical connection: Flying lead 8 ft (2.4 m) AWG 16) 600 V& 10Standards: UL 2808, IEC 61869-2
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 886.512
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- internal: 5.73 in
- Width Nominal
- internal: 2.47 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Materials For Recycling (Kg) End Of Life [C1-c4]
- 0.5292
Product DestinationBCPM, BCPMSC, iEM3000, EM3500, EM4200, EM4900
Carbon Footprint Of The Distribution Phase [A4]0.6470075100802536, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02087955850061849, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]426 kg CO2 eq., 426.3708099685673
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NameLVCT
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Software Versionv6.2.4
Total Lifecycle Carbon Footprint436 kg CO2 eq.
Pep CodeENVPEP2511068_V1-EN
Pep Verification Date2025-12-26
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %58
Height Usefultotal: 8.12 in
Width Realtotal: 4.91 in
Package Weight(Lbs)1.4786 kg
Warranty (In Months)18
Customs Code8504312000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-60 °C, -15-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 436.1745019888228
- Environmental Disclosure
- ENVPEP2511068_V1-EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-12-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2511068_V1-EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2511068_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Output Attributes
- Output Voltage
- 0.333 V
