Split Core Current Transformer 800A 0.333V Output 8ft Lead
Split Core Current Transformer 800A 0.333V Output 8ft Lead
Schneider Electric

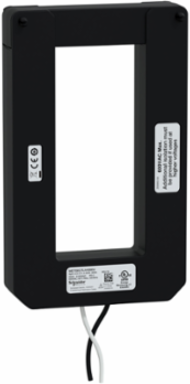

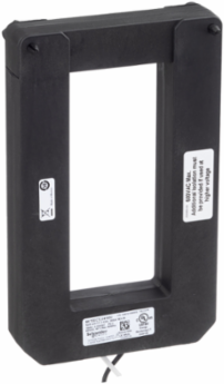

Schneider Electric METSECTLV4080U Split Core Current Transformer 800A 0.333V Output 8ft Lead

  • MPN: METSECTLV4080U
  • PPN: SCH-METSECTLV4080U

CAD

$339.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric METSECTLV4080U Split Core Current Transformer is engineered to provide reliable current monitoring with a robust output of 0.333V at a capacity of 800A. Its unique split core design allows for flexible installation and easy integration into existing systems, making it ideal for various applications requiring accurate current measurement. With an 8-foot lead, this transformer ensures convenience in setup while delivering precise performance, meeting the demands of both commercial and industrial environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico, United States

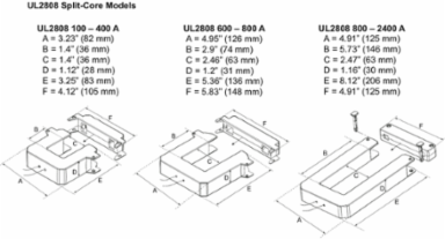

Width
4.91 in
Height8.12 in
Depth1.16 in

Complementary Attributes

Line Rated Current
800 A

Important Information Attributes

Network Frequency
50 Hz, 60 Hz
Certificate Agency
UL 2808, IEC 61869-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1 kg CO2 eq., 1.1171260458420684
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
6 kg CO2 eq., 6.415050325247596
Other Technical Guide
https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
Local Publishable Date
2025-07-10
Stocking Flag
N
Device Type
Relay, Control & Measurement - measuring, monitoring device
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2511068_V1-EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2508
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Current Transformer Type
split core
Electrical Connection
flying lead 8 ft 16 AWG) 600 V
Measurement Accuracy
1 %
Product Or Component Type
current transformer
Returnability
Yes
Sustainable Packaging
No
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2024-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Technical data:& 10Output voltage: 0.333 V& 10Line Rated Current:: 2400 A& 10Network Frequency: 50 Hz/60 Hz& 10Electrical connection: Flying lead 8 ft (2.4 m) AWG 16) 600 V& 10Standards: UL 2808, IEC 61869-2
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %
58
Height Useful
total: 8.12 in
Width Real
total: 4.91 in
Package Weight(Lbs)
1.182 kg
Warranty (In Months)
18
Product DestinationBCPM, BCPMSC, iEM3000, EM3500, EM4200, EM4900
Carbon Footprint Of The Distribution Phase [A4]0.5334368131897065, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.017214522202372035, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]130 kg CO2 eq., 130.44001287403134
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NameLVCT
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Software Versionv6.2.4
Total Lifecycle Carbon Footprint139 kg CO2 eq.
Pep CodeENVPEP2511068_V1-EN
Pep Verification Date2025-12-26
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalinternal: 5.73 in
Width Nominalinternal: 2.47 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504312000

Environment Attributes Main

Ambient Air Temperature For Operation
-15-60 °C, -15-60 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
138.52284058051308
Environmental Disclosure
ENVPEP2511068_V1-EN
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Relative Humidity
0-95 %
Pep Verification Date
2025-12-26
Psr Version
PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2511068_V1-EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2511068_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
current transformer

ETIM

ETIM 8
EC002048
ETIM 9EC002048

Output Attributes

Output Voltage
0.333 V
