Schneider Electric

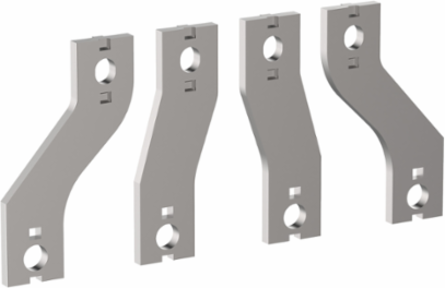

Schneider Electric LA9G4612 TeSys Giga Spreader Kit for LC1G265-500, 4 Pole, 70 mm Connection Pitch

TeSys Giga Spreader Kit for LC1G265-500, 4 Pole, 70 mm Connection Pitch
  • MPN: LA9G4612
  • PPN: SCH-LA9G4612

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$265.43/ EA

Description

These accessories are spreader kit for TeSys Giga 265-330 contactor, 45mm-70mm connection. It is used to 4 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 45mm to 70mm. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2105013
Pvc Free
Yes
China Rohs Regulation
X
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product

Specifications

Range Compatibility
TeSys LC1G || TeSys LR9G
Product Or Component Type
spreader
Quantity Per Set
set of 4
Accessory / Separate Part Categoryconnection accessories
Poles Description4P
Device Short NameLA9G

Environment

Product Certifications
cULus
Standards
EN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
Pollution Degree
3 IEC 60947-1
Operating Altitude
3000 m without derating || 5000 m with derating factor
Ambient Air Temperature For Operation-40-60 °C
Ip Degree Of ProtectionIP20IEC 60529
Ambient Air Temperature For Storage-60-80 °C

Complementary

Height
75 mm
Net Weight
0.70 kg
Depth
30 mm
Connection Pitch70 mm
Width68 mm
Product CompatibilityLC1G265...500
