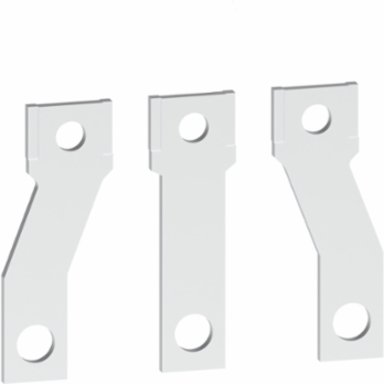

Schneider Electric LA9G3611 TeSys Giga Spreader Kit, 3 Pole 35-45 mm Pitch, 225 A

MPN: LA9G3611
PPN: SCH-LA9G3611

$87.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These accessories are spreader kit for TeSys Giga 115-225 contactor, 35mm-45mm connection. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 35mm to 45mm. The rated current is up to 225 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, United Kingdom

Depth	24 mm

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2105013
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2121
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	LA9G
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Range Of Product	TeSys G
Sustainable Packaging	Yes
Pep Code	ENVPEP2105013EN
Width Nominal	3 mm
Accessory / Separate Part Category	connection accessories
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Publishable Date	2025-08-11
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Connection Pitch	45 mm
Number Of Poles	3P
Product Or Component Type	spreader
Range	TeSys
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal	58.5 mm
Certificate Agency	cULus
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	264.0 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Recycled Metal Content At Cr Level	0 %
Circularity Profile	ENVEOLI2105013
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	9842.52 ft (3000 m) without derating5000 m with derating factor
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2105013EN

Product Compatibility	LC1G115...225, LC1G115...225
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Environmental Disclosure	ENVPEP2105013EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
