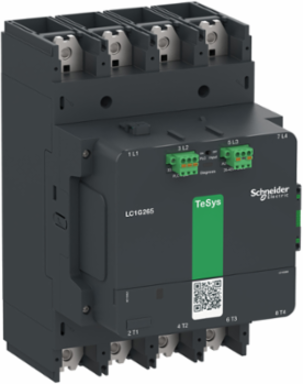

Schneider Electric LC1G2654BEEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 385A, 4 pole/NO, 24-48VAC/DC coil

MPN: LC1G2654BEEA
PPN: SCH-LC1G2654BEEA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$4128.86/ EA

Qty:

Loading add to cart quantity...

Description

Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 385A, 4 pole/NO, 24-48VAC/DC coil

Specifications

Physical Attributes

Color: dark grey

Conformance Attributes

Product Certifications: CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL

StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits: operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

Icw Rated Short Time Withstand Current: 2.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min

Uc Control Circuit Voltage: 24...48 V, 24...48 V AC 50/60 Hz, 24...48 V DC

Irms Rated Making Capacity: 1560 A at 440 V

Rated Breaking Capacity: 2380 A at 440 V

Uimp Rated Impulse Withstand Voltage: 8 kV

Maximum Operating Rate600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1

Ie Rated Operational Current265 A (at <60 °C) at <= 440 V AC-3, 385 A (at <40 °C) at <= 1000 V AC-1

Ue Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC

Maximum Motor Phase Current265 A

Ui Rated Insulation Voltage1000 V

Important Information Attributes

Persona Type Ids: EU, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 315 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 400 A gG at <= 690 V, 450 A UL Type J at <= 600 V

Operating Time: 40...70 ms closing, 15...50 ms opening

Safety Reliability Level: B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1

Connections Terminals: control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end

Ie Rated Operational Current: 265 A (at <60 °C) at <= 440 V AC-3, 385 A (at <40 °C) at <= 1000 V AC-1

Carbon Footprint Of The End Of Life Phase C1 To C4: 22.490062667522334, 22 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 1 988 kg CO2 eq., 1988.2199999999998

Local Publishable Date: 2025-12-27

Return Indicator: N

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Weee Scope: In

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Tier: 1

Function Option: Standard

Average Impedance: 0.000144 Ohm

Compatibility Code: LC1G

Contactor Application: power switching

Electrical Durability: 300 cycles AC-1 400 V

Hold In Power Consumption In Va: 17.9-17.9 VA

Inrush Power In Va: 540-540 VA

Mechanical Durability: 8 Mcycles

Number Of Modules Per Plc Per Pc: 1

Pole Contact Composition: 4 NO

Product Availability: Non-Stock - Not normally stocked in distribution facility

Protective Treatment: TH

Range Of Product: TeSys Giga

Software Version: v5.9.4

Tightening Torque: 35 N.m

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rated Thermal Current Ith: 385 A

Control Circuit Voltage: 24...48 V

Pep Code: ENVPEP2105013EN

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Data Source: extrapolated product

Functional Unit Quantity: 1

Product Weight In G2: 10551

Energy Consumption On Product Lifetime In Kwh: 2277.6

Energy Model Installation A5 2: Electricity Mix; Production mix; Low voltage; CN

Energy Model End Of Life C1 C4 2: Electricity Mix; Production mix; Low voltage; CN

Offer Owner Code: 190788

Width Nominal: 185 mm

Water Use M3 Eq Operational Energy Use B6 2: 87.7045

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed

Power Dissipation Per Pole20 W AC-1 - Ith 385 A, 11 W AC-3 - Ith 265 A

Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5

Icw Rated Short Time Withstand Current2.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min

Carbon Footprint Of The Distribution Phase A43.0710236975222536, 3 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A359 kg CO2 eq., 58.75701213537067

Local Data StatusPublishable

Global Commercial StatusCommercialised

Stocking FlagY

Device TypeLV equipment - LV contactor

TraceabilityYes

Average Life Duration20 year(s)

Legacy Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI2105013

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date2121

China Rohs In ScopeNo

Without Single Use PlasticYes

Tier Id1

Function Option IdSTANDARD

Product Kit IdentifierN

Coil Technologybuilt-in bidirectional peak limiting

Connection Pitch45 mm

Device Short NameLC1G

Halogen Free StatusHalogen free plastic parts product

Hold In Power Consumption In W6.4-6.4 W

Inrush Power In W380 W

Mounting Supportplate

Overvoltage CategoryIII

Poles Description4P

Product Or Component Typecontactor

RangeTeSys

ReturnabilityNo

Sustainable PackagingYes

Total Lifecycle Carbon Footprint2 073 kg CO2 eq.

Ith Conventional Free Air Thermal Current385 A (at 40 °C)

Warranty In Months18

Rated Thermal Current Hv385 A

Database Version2022-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional Unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.

Functional Unit UnitUnit

Reference Lifetime In Y220

Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN

Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; CN

Recyclability Potential In 255

Height Nominal290 mm

Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 25.317

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Permissible Ambient Air Temperature Around The Device: -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc

Halogene Performance: Halogen free plastic parts product

Mercury Free: Yes

Ambient Air Temperature For Operation: -25-60 °C

Circularity Profile: ENVEOLI2105013

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106

Take BackNej

Recycled Metal Content At Cr Level0 %

Carbon Footprint2072.538098500415

Ambient Air Temperature For Storage-60-80 °C

Environmental DisclosureENVPEP2105013EN

Halogen Content PerformanceHalogen free plastic parts product

Packaging Without Single Use PlasticYes

Pep CodeENVPEP2105013EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: contactor

Range Of ProductTeSys Giga

ETIM

ETIM 8: EC000066

ETIM 9EC000066

Specifications

Depth: 226 mm
