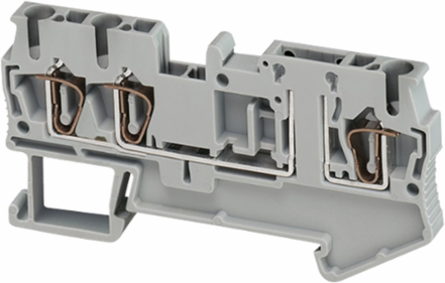

Schneider Electric NSYTRR23TB Linergy TR Removable Carrier Disconnect Terminal Block, 3 Points, 4mm2

MPN: NSYTRR23TB
PPN: SCH-NSYTRR23TB
UNSPSC: 39121410

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$10.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric Linergy TR Removable Carrier Disconnect Terminal Block is engineered for efficient electrical management in automation and control applications. Featuring a design that accommodates three connection points with a capacity of 4mm2, this terminal block offers reliable performance and ease of use. Its removable carrier makes installation and maintenance straightforward, allowing for quick and efficient system modifications. Ideal for professionals seeking a dependable solution for their terminal block needs, this product exemplifies Schneider Electric's commitment to innovation and quality in the electrical industry.

Features

It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section.
Mounting by clip-on and sideways connection by single-level 1x1 spring terminals.
Releasing pressure on the sides stops the flow of cable ends.
Facilitates storage by avoiding mixing cable ends of different sizes
Identifies the cross section of cable ends it contains

Documentation & Downloads

Specifications

Key Specifications

Weight	8.574 g

Physical Attributes

Fuse Size	5 x 20 mm, 6 x 32 mm
Wire Stripping Length	10 mm

Color	Gray

Complementary Attributes

Line Rated Current	20-20 A EN/IEC 60947-7-116-16 A CSA, 16-16 A UL

Ue Rated Operational Voltage	400 V EN/IEC 60947-7-1300 V UL, 300 V CSA

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Connection Component	blade, diode, cylindrical fuse
Dielectric Loss	0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
Surface Resistance	1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Certificate Agency	CSA, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.022033273
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.052801189
Local Data Status	Publishable
Return Indicator	N
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2518
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Cable Cross Section	0.08-2.5 mm², flexible without cable end0.8-4 mm², solid
Connection Position	top
Dielectric Constant	3.7 at 1 MHz
Energy Efficiency Optimized	False
Material	polyamide 6/6: insulating case
Nominal Cross Section	2.5 mm²
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	terminal block
Range	Linergy
Returnability	No
Sustainable Packaging	No
Terminal Block Type	removable carrier disconnect
Connections Terminals	1 x spring terminal upstream2 x spring terminal downstream
Data Source	extrapolated product
Length Total	72 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Creep Resistance	500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Resistivity	10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Tool Type	disconnection flat screwdriver, connection flat screwdriver
Carbon Footprint Of The Distribution Phase A4	0.001121192, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.001007831, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	4 kg CO2 eq., 4.4787
Local Publishable Date	2026-06-27
Use Carbon Footprint	4.4787
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	terminal block
Device Short Name	TRR
Dielectric Strength	1000 V IEC 60243-1
Flame Retardance	V0 0.8 mm UL 94
Mounting Mode	clip-on
Number Of Terminals	3
Product Name	Linergy TR
Quantity Per Set	set of 50
Range Of Product	Linergy
Software Version	v5.9.4
Terminal Block Level	1
Total Lifecycle Carbon Footprint	5 kg CO2 eq.
Database Version	2022-01
Height Nominal	36.5 mm
Width Nominal	5.2 mm
Customs Code	8536904000
Silicone Free	Yes
Functional Unit Description	Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 20.5 A, a rated cross section 2.5 mm2, a rated voltage 550 V, a Short-time withstand current 0.3 kA.
Functional Unit Unit	unit
Recyclability Potential In %	37

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Halogene Performance	Halogen free plastic parts product
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Environmental Disclosure	ENVPEP2309017EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2309017EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Operation	-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	4.555663484
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Spacial enclosures
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
