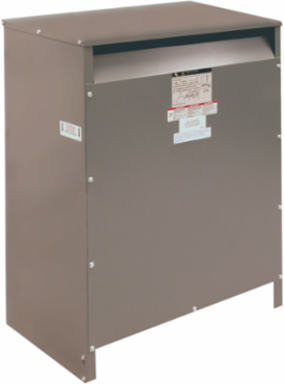

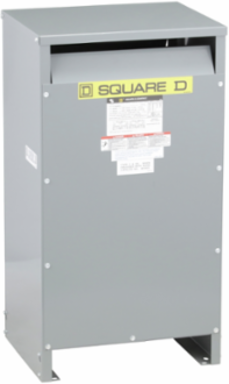

Square D EE25S3H Energy Efficient Transformer 25 kVA, 240 x 480V Primary, 120/240V Secondary, NEMA 2
Square D EE25S3H Energy Efficient Transformer 25 kVA, 240 x 480V Primary, 120/240V Secondary, NEMA 2
- MPN: EE25S3H
- UPC: 785901558934
- PPN: SCH-EE25S3H
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2508.78/ EA
Description
With Energy Efficient Transformers minimum efficiencies have been established for each size of transformer, and extensive design, testing, and manufacturing time has been spent to ensure each transformer meets or exceeds these efficiencies. The Square D Energy Efficient transformer offering includes all of the popular options including low temperature rise, 115 °C and 80 °C, and aluminum or copper windings. These transformers are part of a complete line of Lean Power products from Schneider Electric. Our power conservation, management and monitoring products, systems, and services help to reduce energy consumption in business and industry environments. This Energy Efficient Transformer is a 1 phase, 25 kVA, that has a primary Voltage of 240 x 480V and a secondary voltage of 120/240V. The Enclosure has a NEMA 2 rating and has a box number of 17H with a insulation temperature of 220 °C. This unit has 6 taps and with FCAN & FCBN tap off of 2.5 % 2+ 4-. The unit is made of aluminium with a 150 °C temperature rise.
Specifications
Specifications
- Primary Voltage
- 240 x 480 V
- Secondary Voltage
- 120/240 V
- Number Of Tap-Offs
- 6 2.5 % 2+ 4-
- Network Number Of Phases
- 1 phase
- Rated Power In Va
- 25 kVA
- Insulation Temperature
- 220 °C
Nema Degree Of ProtectionNEMA 2
Temperature Rise150 °C
Product Or Component TypeEnergy Efficient Transformer
Materialaluminium
Box Number17H
Complementary
- Height
- 37 in
- Depth
- 16 in
Width20 in
Net Weight129.274 kg
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1311012EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
Downloads
