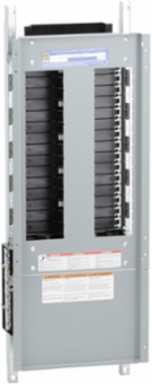

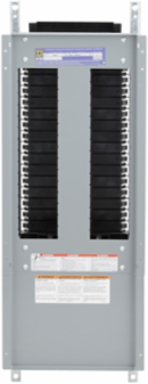

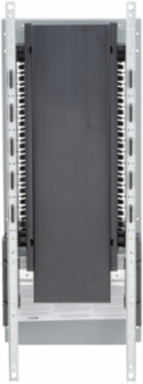

NF Panelboard Interior 250A 4 Wire 30 Pole Spaces 600Y/347VAC
Square D

Square D NF430L2 NF Panelboard Interior 250A 4 Wire 30 Pole Spaces 600Y/347VAC

  • MPN: NF430L2
  • UPC: 785901871477
  • PPN: SCH-NF430L2

CAD

$969.12

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

NF Panelboard Interior 250A 4 Wire 30 Pole Spaces 600Y/347VAC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico

Physical Attributes

Enclosure Nominal Height
38 in, 50 in
Enclosure Nominal Width20 in

Complementary Attributes

Line Rated Current
250 A

Important Information Attributes

Persona Type Ids
EU, EUA, LC, OM, SC
Tightening Torque
4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil), 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
Connections - Terminals
lug line AWG 6...350 kcmil aluminium, lug neutral AWG 6...350 kcmil aluminium
Carbon Footprint Of The End-of-life Phase [C1 To C4]
23 kg CO2 eq., 22.5323784583
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
60 kg CO2 eq., 60.3722437599
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Traceability
No
Weee Scope
In
Scope Perimeter
Outside of Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Market Segmentation Id
COMMERCIAL
Product Kit Identifier
N
Energy Efficiency Optimized
False
Material
aluminium
Phase
3 phase 4 wires
Returnability
Yes
Sustainable Packaging
No
Pep Code
ENVPEP2303002EN
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %
94
Width Nominal
10.44 in
[Iu] Rated Interrupted Current
65 kA
Package Weight(Lbs)
9.072 kg
Warranty (In Months)
18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
32.748
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
258.19
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
4.2466
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
797.64
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
653.42
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Certificate AgencyUL 67, CSA C22.2
Carbon Footprint Of The Distribution Phase [A4]2.6738153354, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.73750402, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]33 kg CO2 eq., 32.748
Local Publishable Date2026-03-26
Stocking FlagN
ServiceabilityNo
Use Carbon Footprint32.748
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Circuit Breaker TypeEDB/EDG/EDJ
Load Center Typemain lugs
Number Of Spaces30
Product AvailabilityStock - Normally stocked in distribution facility
Software Versionv5.9.4
Total Lifecycle Carbon Footprint119 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67,UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh73.4088
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Height Nominal33 in
[Ue] Rated Operational Voltage600Y/347 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]32.703
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]653.42
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]23.287
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]653.42
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]144.21
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]144.21

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
119.0639415736
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303002EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Phase
3 phase 4 wires

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
