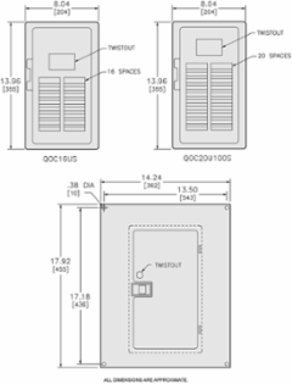

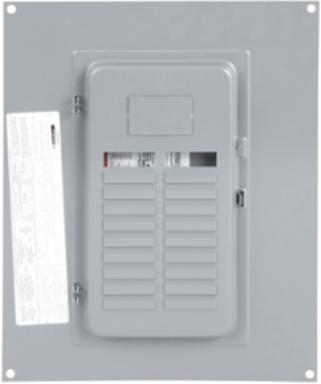

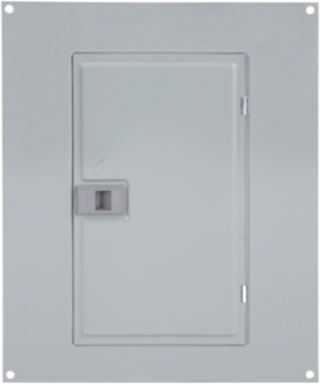

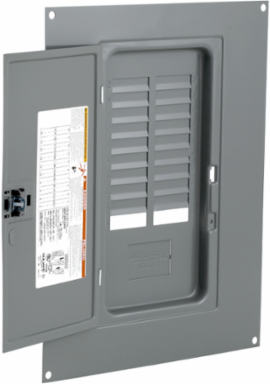

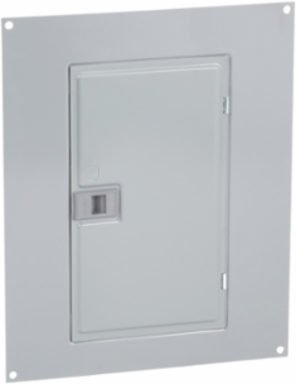

Square D QOC20U100S QO Loadcentre Surface Cover, 14.25 Inch Width x 17.92 Inch Height
- MPN: QOC20U100S
- UPC: 785901746003
- PPN: SCH-QOC20U100S
CAD
$117.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers enable the use of a full complement of accessories. Systems are single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO load centers feature plated copper bus, providing superior performance and durability. This surface mounting load center cover is painted gray. This cover is for an indoor load center rated NEMA 1 with 20 spaces. This unit is used with a 125A main.
Documentation & Downloads
Specifications
Additional
- Number of Spaces
- 20
- Height
- 17.92 in
- Cover Type
- Surface cover
- Product Or Component Type
- Loadcentre Cover
- Surface Finish
- Baked enamel gray
- Rohs Exemption Information
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration
- Environmental Disclosure
- ENVPEP2212001
- Sustainable Offer Status
- Green Premium product
Depth0.7 in
Width14.25 in
Tightening Torque2.3 N.m
Product CompatibilityIndoor loadcentre
Range Of ProductQO
Toxic Heavy Metal FreeYes
Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above threshold
Warranty18 months
