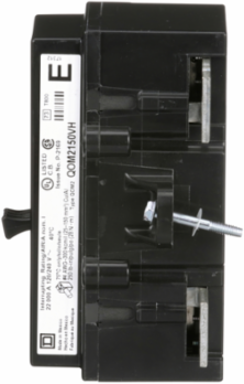

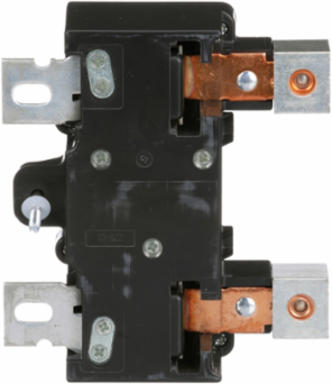

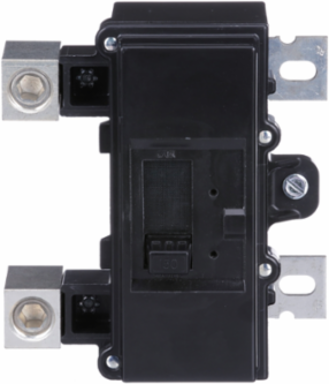

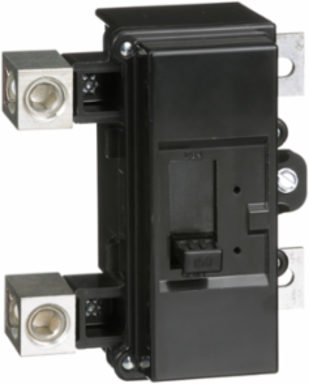

Square D QOM2150VH Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
Square D QOM2150VH Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
- MPN: QOM2150VH
- UPC: 785901004059
- PPN: SCH-QOM2150VH
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$551.51/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of accessories are available. The lug connectors will accept one 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.60 inches, a width of 3.60 inches and a depth of 5.07 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Features
- Provides superior circuit protection
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Line Rated Current
- 150 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Destination
- QO load center, Homeline load center
- Carbon Footprint Of The Distribution Phase A4
- 0.4063250612, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0063270336, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 248 kg CO2 eq., 248.4799930762
- Local Data Status
- Publishable
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Market Segmentation
- Residential
- H And D Subrange
- RESI
- H And D Enrichment Function
- MCB
- H And D Enrichment Class 4
- MCB UL 2P
- Circuit Breaker Application
- primary main breaker
- Device Short Name
- QOM2
- Energy Efficiency Optimized
- False
- Mounting Mode
- bolt-on
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 254 kg CO2 eq.
- Stocking Flag
- N
- Pep Code
- ENVPEP2212007EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; consumption mix, at consumer; 120V; US
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Ue Rated Operational Voltage2120/240 V AC, 120 V AC
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.161951102
Carbon Footprint Of The Manufacturing Phase A1 To A35 kg CO2 eq., 4.7497152653
Ue Rated Operational Voltage5120/240 V AC, 120 V AC
Local Publishable Date2025-12-16
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
H And D DomainSafety
H And D Enrichment Assignmentno
H And D Enrichment Class 3Circuit Breakers
AWG GaugeAWG 4...300 kcmil aluminium/copper
Circuit Breaker Typestandard
Electrical Connectionlugs
Load Center Typemain breaker
Package Weight Lbs1.202 kg
Poles Description2P
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Tightening Torque6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
Medium DescMain breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/210 V AC and rated current 200 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 2 poles& 10- Rated breaking capacity 22,000 A
Energy Model Manufacturing A1 A3 2Energy model used: Mexico
Energy Model Use B6 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 253.8043115384
- Environmental Disclosure
- ENVPEP2212007EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212007EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component Typeminiature circuit-breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 129 mm
