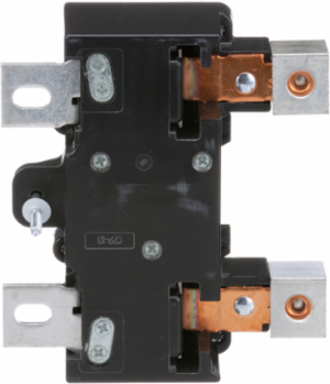

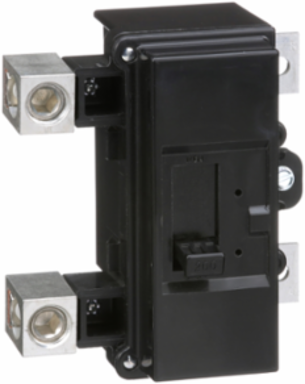

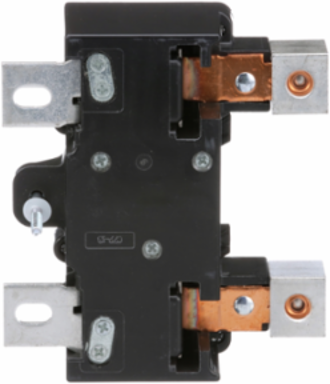

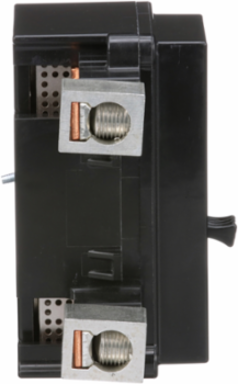

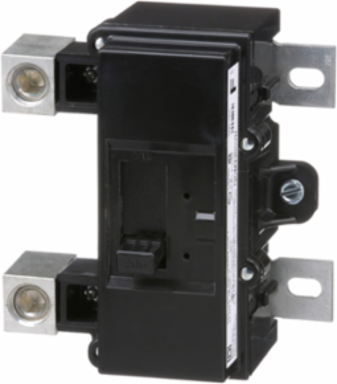

Square D QOM2200VH Main breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bolt on
Square D QOM2200VH Main breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bolt on
- MPN: QOM2200VH
- UPC: 785901004066
- PPN: SCH-QOM2200VH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$577.18/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 200A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Ue Rated Operational Voltage
- 120/240 V AC, 120 V AC
- Rated Current
- 200 A
Line Rated Current200 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Destination
- miniature circuit-breaker QO, miniature circuit-breaker Homeline, QO load center, Homeline load center
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.16505
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 5 kg CO2 eq., 4.8406
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Circuit Breakers
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Distribution Carbon Footprint
- 0.4141
- Legacy Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- AWG 4...300 kcmil copper or aluminium
- Circuit Breaker Type
- standard
- Electrical Connection
- lugs
- Load Center Type
- main breaker
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Tightening Torque
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Carbon Footprint Kg Co2 Eq Total Life Cycle
- 253.91
- Pep Code
- ENVPEP2212007EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- referent product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 1225
- Energy Model Manufacturing A1 A3 2
- Energy model used: Mexico
- Energy Model Use B6 2
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In 2
- 53
- Height Nominal
- 142 mm
- Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 2
- 50.431
- Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2
- 3025.4
- Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2
- 51.2
- Hazardous Waste Disposed Of Kg End Of Life C1 C4 2
- 1.5667
- Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2
- 4.8583
- Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2
- 3260.2
- Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 2
- 5.848
- Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2
- 1.5622
- Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 2
- 5.8558
- Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 2
- 1.564
- Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2
- 9.6135
- Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2
- 12.837
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2
- 3247.3
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 2
- 5.848
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2
- 1.5622
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2
- 8.891
- Air Pollution M3 Manufacturing A1 A3 2
- 1735.9
- Air Pollution M3 Operational Energy Use B6 2
- 21102
- Water Pollution M3 Total Life Cycle2
- 12569
- Water Pollution M3 Distribution A4 2
- 68.107
- Water Pollution M3 End Of Life C1 C4 2
- 13.498
- Global Warming Kg Equivalent Co2 Manufacturing A1 A3 2
- 4.8406
- Global Warming Kg Equivalent Co2 Operational Energy Use B6 2
- 248.48
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase A40.4141, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0064481, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6248 kg CO2 eq., 248.48
Local Publishable Date2026-03-10
Return IndicatorY
Stock Policy1
H And D SubrangeRESI
H And D Enrichment FunctionMCB
H And D Enrichment Class 4MCB UL 2P
ServiceabilityNo
Field Service DivisionPPIBS
Manufacturing Carbon Footprint4.8406
Use Carbon Footprint248.48
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Circuit Breaker Applicationprimary main breaker
Device Short NameQOM2
Energy Efficiency OptimizedFalse
Mounting Modebolt-on
Poles Description2P
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint254 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/210 V AC and rated current 200 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 2 poles& 10- Rated breaking capacity 22,000 A
Functional Unit Unitunit
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model End Of Life C1 C4 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Offer Owner Code190788
Width Nominal129 mm
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 25.8185
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 21.2564
Hazardous Waste Disposed Of Kg Operational Energy Use B6 26.6437
Net Use Of Fresh Water M3 Manufacturing A1 A3 21.6318
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 237.994
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2108.39
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 23144.3
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2118
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 23345.2
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2210.52
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2200.9
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 212.837
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 295.55
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 23144.3
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2209.8
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2200.9
Air Pollution M3 Distribution A4 217.221
Air Pollution M3 End Of Life C1 C4 211.293
Water Pollution M3 Manufacturing A1 A3 2235.95
Water Pollution M3 Operational Energy Use B6 212250
Global Warming Kg Equivalent Co2 Total Life Cycle2253.91
Global Warming Kg Equivalent Co2 Distribution A4 20.4141
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 253.91
- Environmental Disclosure
- ENVPEP2212007EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNej
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212007EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component Typeminiature circuit-breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 91 mm
