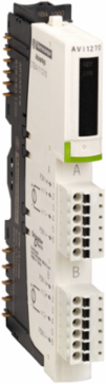

Schneider Electric STBAVI1270K Analog Input Kit, 2 Inputs, +/- 10V, 11 Bits, 0.115 kg
- MPN: STBAVI1270K
- PPN: SCH-STBAVI1270K
CAD
$473.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric STBAVI1270K Analog Input Kit is designed to seamlessly integrate into automation and control systems, providing reliable performance with its two input channels, each capable of handling a voltage range of +/- 10V. Offering 11-bit resolution, this input kit facilitates precise data acquisition, empowering users to achieve higher accuracy in their monitoring and control applications. With its compact design, it fits easily into various automation setups, making it an essential component for those looking to enhance the functionality of their PLC and HMI systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
| Depth | 70 mm |
|---|
Complementary Attributes
| Absolute Maximum Input | 50 V |
|---|
| Maximum Supply Current For Sensors | 100 mA per input channels |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Data Format | IEC 61131-2, EN 61131-2 |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail |
| Certificate Agency | CSA, C-tick, UL, ATEX Cat 3G, FM Class 1 Division 2 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Addressing Requirement | 4 input words |
| Cold Swapping | yes |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Overvoltage Category | II |
| Product Or Component Type | standard analog input kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Supply | power distribution module |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/-0.01 %/°C+/-0.01 %/°C |
| Typical Current Consumption | 30 mA 5 V DC for logic bus |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Differential Linearity | monotonic |
| Width Nominal | 128.3 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | true |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Kit Composition | STBXBA1000 base, STBXTS1100, 6-terminal screw type connector, STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector |
| Integral Linearity | +/- 0.2 %FS, +/- 0.2 %FS |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | true |
| Fallback Status | state 0 basic NIMsuser configurable standard NIMs |
| Hot Swapping Fallback | yes for standard NIMs |
| Local Signalling | 1 LED green module status (RDY)1 LED red module error (ERR) |
| Network Type | AC/DC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Type Of Filter | single low pass input filter 25 Hz |
| Update Time | 10 ms |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 10-10 V |
| System Accessory | true |
| Height Nominal | 18.4 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 138.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C without derating), -25-70 °C without derating)-25-70 °C without derating), -25-70 °C without derating) |
|---|---|
| Product Compatibility | mounting base STBXBA1000, power distribution module STBPDT3100/3105 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | standard analog input kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Number | 0 |
|---|
| Analogue Output Resolution | 11 bits |
|---|
Surge Protection And Filtering Attributes
| Type Of Filter | single low pass input filter 25 Hz |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Absolute Maximum Input | 50 V |
|---|---|
| Analogue Input Resolution | 11 bits + sign |
| Input Impedance | 400 kOhm |
| Analogue Input Number | 2 |
|---|---|
| Analogue Input Type | voltage +/- 10 V |
| Input Protection Type | protected against short-circuit |
