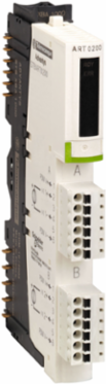

Schneider Electric STBART0200K Standard Analog Input Kit, 2 Inputs, 15 Bits Resolution, 24V DC
Schneider Electric STBART0200K Standard Analog Input Kit, 2 Inputs, 15 Bits Resolution, 24V DC
- MPN: STBART0200K
- PPN: SCH-STBART0200K
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$502.68/ EA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBART0200 module, STBXTS1100, 6-terminal screw type connector, STBXBA1000 base and STBXTS2100, 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
Specifications
Environment
- Product Certifications
- UL || FM Class 1 Division 2 || CSA || ATEX Cat 3G || C-Tick
- Ambient Air Temperature For Operation
- 0-70 °C
- Vibration Resistance
- +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
- Pollution Degree
- 2 IEC 60664-1
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Ambient Air Temperature For Operation
- 32...140 °F without derating
Ambient Air Temperature For Storage-40...185 °F without derating
Shock Resistance30 gn 11 ms IEC 88 reference 2-27
Ip Degree Of ProtectionIP20 IEC 61131-2 class 1
Ambient Air Temperature For Storage-40-85 °C without derating
Operating Altitude<= 2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Maximum Supply Current For Sensors
- 100 mA per input channels
- Status Led
- 1 LED (green) module status (RDY) || 1 LED (red) module error (ERR)
- Supply
- power distribution module
- Current Consumption
- 30 mA 5 V DC logic bus
- Fallback Status
- state 0 basic NIMs || user configurable standard NIMs
- Addressing Requirement
- 1 word for cold-junction compensation || 2 input words
- Maximum Wiring Resistance
- 20 Ohm Cu 10 IEC/US/JIS 2 or 3 wires || 20 Ohm Ni 100 IEC/US/JIS 2 or 3 wires || 20 Ohm Pt 100 IEC/US/JIS 2 or 3 wires || 200 Ohm Ni 1000 IEC/US/JIS 2 or 3 wires || 200 Ohm Pt 1000 IEC/US/JIS 2 or 3 wires || 50 Ohm Cu 10 IEC/US/JIS 4 wires || 50 Ohm Ni 100 IEC/US/JIS 4 wires || 50 Ohm Pt 100 IEC/US/JIS 4 wires || 500 Ohm Ni 1000 IEC/US/JIS 4 wires || 500 Ohm Pt 1000 IEC/US/JIS 4 wires
- Protection Type
- short-circuit protection
- Product Compatibility
- mounting base STBXBA1000 || power distribution module STBPDT3100/3105
- Measurement Accuracy
- +/- 1 °C Ni 100 25 °C external || +/- 1 °C Ni 100 25 °C internal || +/- 1 °C Ni 1000 25 °C external || +/- 1 °C Ni 1000 25 °C internal || +/- 1 °C Pt 100 25 °C internal || +/- 1 °C Pt 1000 25 °C internal || +/- 1.75 °C thermocouple B with external cold-junction compensation 25 °C || +/- 1.75 °C thermocouple E with external cold-junction compensation 25 °C || +/- 1.75 °C thermocouple J with external cold-junction compensation 25 °C || +/- 1.75 °C thermocouple K with external cold-junction compensation 25 °C || +/- 1.75 °C thermocouple R with external cold-junction compensation 25 °C || +/- 1.75 °C thermocouple S with external cold-junction compensation 25 °C || +/- 1.75 °C thermocouple T with external cold-junction compensation 25 °C || +/- 2 °C Pt 100 25 °C external || +/- 2 °C Pt 1000 25 °C external || +/- 2.85 °C thermocouple B with external cold-junction compensation 60 °C || +/- 2.85 °C thermocouple E with external cold-junction compensation 60 °C || +/- 2.85 °C thermocouple J with external cold-junction compensation 60 °C || +/- 2.85 °C thermocouple K with external cold-junction compensation 60 °C || +/- 2.85 °C thermocouple R with external cold-junction compensation 60 °C || +/- 2.85 °C thermocouple S with external cold-junction compensation 60 °C || +/- 2.85 °C thermocouple T with external cold-junction compensation 60 °C || +/- 3.6 °C thermocouple R with internal cold-junction compensation 25 °C || +/- 4 °C Cu 10 25 °C external || +/- 4 °C Cu 10 25 °C internal || +/- 4 °C thermocouple K with internal cold-junction compensation 25 °C || +/- 4.1 °C thermocouple S with internal cold-junction compensation 25 °C || +/- 4.2 °C thermocouple R with internal cold-junction compensation 60 °C || +/- 4.4 °C thermocouple T with internal cold-junction compensation 25 °C || +/- 4.6 °C thermocouple B with internal cold-junction compensation 25 °C || +/- 4.6 °C thermocouple E with internal cold-junction compensation 25 °C || +/- 5 °C thermocouple S with internal cold-junction compensation 60 °C || +/- 5.1 °C thermocouple J with internal cold-junction compensation 25 °C || +/- 5.5 °C thermocouple K with internal cold-junction compensation 60 °C || +/- 6.4 °C thermocouple T with internal cold-junction compensation 60 °C || +/- 6.8 °C thermocouple B with internal cold-junction compensation 60 °C || +/- 6.8 °C thermocouple E with internal cold-junction compensation 60 °C || +/- 7 °C thermocouple J with internal cold-junction compensation 60 °C
Cold Swappingyes
Input Impedance10 MOhm +/- 80 mV
Hot Swapping Fallbackyes for standard NIMs
Data FormatEN 61131-2 || IEC 61131-2
MarkingCE
Conversion Time150 ms voltage 60 Hz || 170 ms voltage 50 Hz || 180 ms temperature probe 60 Hz 2 or 4 wires || 200 ms temperature probe 50 Hz 2 or 4 wires || 210 ms thermocouple with internal cold-junction compensation 60 Hz || 230 ms thermocouple with internal cold-junction compensation 50 Hz || 300 ms temperature probe 60 Hz 3 wires || 340 ms temperature probe 50 Hz 3 wires || 360 ms thermocouple with external cold-junction compensation 60 Hz || 400 ms thermocouple with external cold-junction compensation 50 Hz
Absolute Accuracy Error+/- 0.1 % of full scale 25 °C internal || +/- 0.15 % of full scale 25 °C external
Absolute Maximum Input+/- 7.5 V DC
Overvoltage CategoryII
[Us] Rated Supply Voltage24 V DC
Measurement Resolution0.01 mV voltage || 0.1 °C or 0.1 °F temperature probe || 0.1 °C or 0.1 °F thermocouple
Specifications
- Range Of Product
- Modicon STB distributed I/O solution
- Product Or Component Type
- standard analog input kit
- Analogue Input Resolution
- 15 bits + sign
- Analogue Input Type
- voltage +/- 80 mV || temperature probe -100...+260 °C Cu 10 2, 3 or 4 wires IEC || temperature probe -100...+450 °C Pt 100 2, 3 or 4 wires US/JIS || temperature probe -100...+450 °C Pt 1000 2, 3 or 4 wires US/JIS || temperature probe -200...+850 °C Pt 100 2, 3 or 4 wires IEC || temperature probe -200...+850 °C Pt 1000 2, 3 or 4 wires IEC || temperature probe -60...+180 °C Ni 100 2, 3 or 4 wires IEC || temperature probe -60...+180 °C Ni 1000 2, 3 or 4 wires IEC || thermocouple +130...+1820 °C thermocouple B || thermocouple -200...+760 °C thermocouple J || thermocouple -270...+1000 °C thermocouple E || thermocouple -270...+1370 °C thermocouple K || thermocouple -270...+400 °C thermocouple T || thermocouple -50...+1665 °C thermocouple R || thermocouple -50...+1665 °C thermocouple S
Type Of Filtersingle low pass input filter 25 Hz
Analogue Input Number2
Kit CompositionSTBART0200 module || STBXTS1100, 6-terminal screw type connector || STBXBA1000 base || STBXTS2100, 6-terminal spring clamp connector
