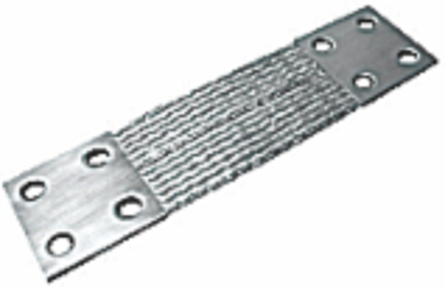

Blackburn SWC215A11200 Standard Flexible Braid Connector 3 Inch, 4 Hole, 1200 mm Length
- MPN: SWC215A11200
- UPC: 783786581849
- PPN: T-B-SWC215A11200
CAD
$1345.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 AWG individual strand standard flexible electro-tin plated connector - 4 holes NEMA standard 2150 ampacity 1200 mm long
Specifications
European Specifications (ETIM)
| ETIM | EC000839 Braid wire |
|---|---|
| Conductor category | Class 5 = flexible |
| Cable height approx. | 1200mm |
| Conductor material | Cu, tinned |
|---|---|
| Shape of conductor | Flat |
North American Specifications (UNSPSC)
| UNSPSC | 39121465 Flexible braid |
|---|---|
| Brand Name | Blackburn |
| Special Features | 4 Hole Nema Pads |
| Standard | IEEE / ANSI C37, 34 |
| Cable Width | 3 inch (76.2 mm) |
| Conductor Category | Flexible |
| IGCC | 4695 Flexible braid |
|---|---|
| Type | Standard Flexible Braid Connector - 4-Hole |
| Application | Standard Flexible Links for Medium-Duty Applications |
| Conductor Material | Tin-Plated Copper |
| Cable Length | 1200 mm |
| Shape Of Conductor | Flat |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 0.01 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
