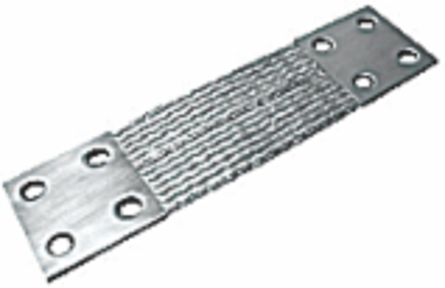

Blackburn SWC215A1304T Standard Flexible Braid Connector 304 mm Long, 4 Hole NEMA, Tin-Plated Copper
- MPN: SWC215A1304T
- UPC: 783786819409
- PPN: T-B-SWC215A1304T
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 AWG individual strand standard flexible connector - 4 holes NEMA standard 2150 ampacity 304 mm long
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121465 Flexible braid |
|---|---|
| Brand Name | Blackburn |
| Special Features | 4 Hole Nema Pads |
| Standard | IEEE / ANSI C37, 34 |
| Cable Width | 3 inch (76.2 mm) |
| Conductor Category | Flexible |
| IGCC | 4695 Flexible braid |
|---|---|
| Type | Standard Flexible Braid Connector - 4-Hole |
| Application | Standard Flexible Links for Medium-Duty Applications |
| Conductor Material | Tin-Plated Copper |
| Cable Length | 304 mm |
| Shape Of Conductor | Flat |
European Specifications (ETIM)
| ETIM | EC000839 Braid wire |
|---|---|
| Conductor category | Class 5 = flexible |
| Cable height approx. | 304mm |
| Conductor material | Cu, tinned |
|---|---|
| Shape of conductor | Flat |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
