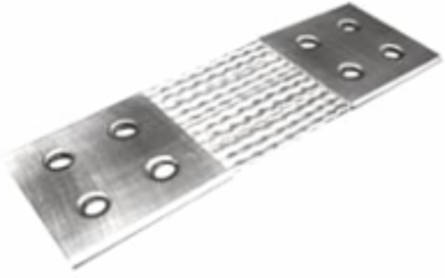

Blackburn SWD210A1457T Flexible Braid Connector 4 Hole 457 mm Tinned Copper
- MPN: SWD210A1457T
- UPC: 783786862825
- PPN: T-B-SWD210A1457T
- UNSPSC: 39121465
CAD
$780.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 18 inch (457 mm) long, 4 inch (101.6 mm) wide, 3/8 inch (9.5 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand.
Specifications
Additional Information
| Application | Standard Flexible Links for Medium-Duty Applications |
|---|---|
| Cable Length | 457 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Standard Flexible Braid Connector - 4-Hole |
| Standards | IEEE / ANSI C37, 34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20091130 |
| Product Name | COPPER FLEX.BRAID GROUND CONNECTOR |
| Special Functions | 4 Hole Nema Pads |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
