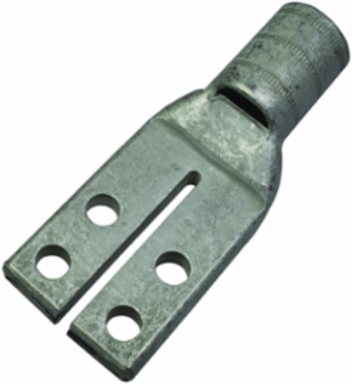

Burndy YAV2CL4TC14FXG1 Standard Length Barrel Terminal, 4 Holes, 2 AWG Copper, 1/4 Inch Stud
- MPN: YAV2CL4TC14FXG1
- UPC: 781810411322
- PPN: BUR-10050820
CAD
$236.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4 Hole Split Pad ,Cu Comprsn ,Flex Conductor, Insp Window, #2 Weld, 3(125/#24) DLO 2(150/#24) DLO, 32 AWG Code 60 NAVY, 1/4" stud, Std Brl, Brown, 10
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 5/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size inch
- 0.28 in
- Dimension - L Length Overall mm
- 72 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 1.38 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.62 in
Dimension - F Width Center to Center inch0.75 in
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch2.84 in
Dimension - Outside Diameter inch0.46 in
Dimension - Strip Length inch11/16
Dimension - Z inch0.83 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 3 (125/#24) DLO;2 (150/#24) DLO
- Conductor - Copper Flex H Size
- 2 AWG
- Conductor - Copper Flex K Size
- 2 AWG
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Conductor - CopperWeld Str Size
- 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
Conductor - Copper Flex G Size2 AWG
Conductor - Copper Flex I Size2 AWG
Conductor - Copper Flex M Size2 AWG
Conductor - Copper Str Size2 AWG
Conductor - MaterialCopper
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 4
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818104113222
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810411322
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
